5. Review the “Electric requirements”.
BEFORE OPERATING OR TESTING, follow the grounding instructions in the “Grounding”.
U.S. Models:
Risk Of Electric Shock - All U.S. models are produced for a 3-WIRE SYSTEM
CONNECTION.
The dryer frame is grounded to the neutral conductor at the terminal block.
A 4-WIRE SYSTEM CONNECTION is required for new or remodeled construction, mobile
homes, or if local codes do not permit grounding through neutral conductor. If the 4-wire
system is used, the dryer frame cannot be grounded to the neutral conductor at the terminal
block. Refer to the “Electric requirements” section on 3-WIRE or 4-WIRE SYSTEM
CONNECTIONS.
6. [GAS MODELS ONLY]
Review the “Gas requirements” section on page 11. Remove the pipe thread protective cap.
Apply a pipe joint compound or about 1 ½” wraps of teflon tape over all threaded connections.
- The pipe joint compound must be resistant to the actions of any liquefied petroleum gas.
Connect the gas supply to your dryer. An additional fitting is required to connect the 3/4" (1.9cm)
female thread end of a flexible connector to the 3/8" (1cm) male threaded end on the dryer.
Securely tighten the gas line fitting over the threads.
Turn on the gas supply.

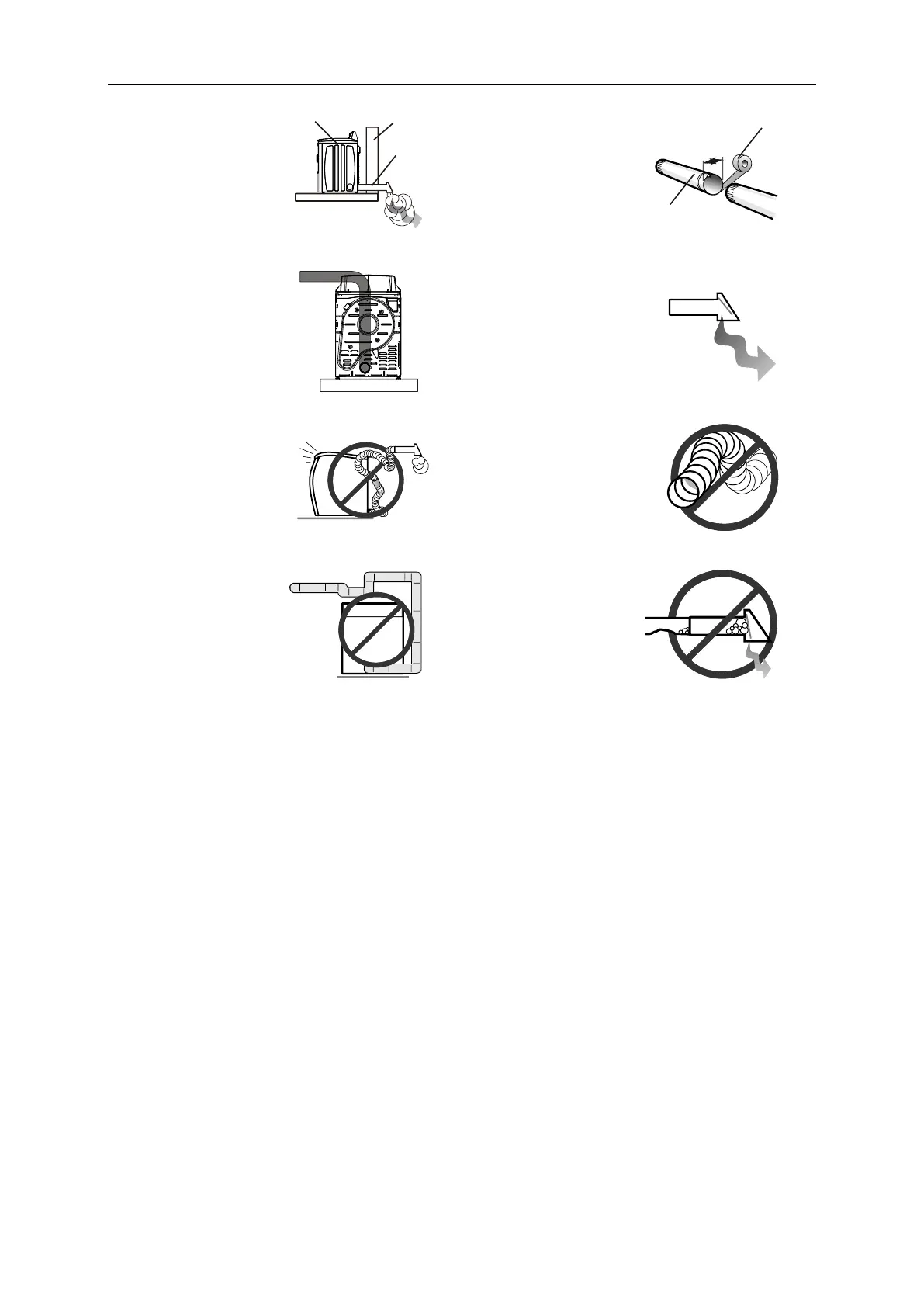

Dryer
Wall
Duct
exhaust
Make sure your
dryer is installed
properly so it
exhausts air
easily.
4"
Duct
Tape
Use a 4 inch. (10.2cm)
diameter rigid metal
duct. Tape all joints,
including at the dryer.
Never use lint-trapping
screws.
Keep ducts as
straight as
possible.
Clean all old ducts
before installing your
new dryer. Be sure the
vent flap opens and
closes freely. Inspect
and clean the exhaust
system annually.
DO NOT
restrict your
dryer with a poor
exhaust system.
DO NOT use a plastic,
thin foil, or non-metal
flexible duct.
DO NOT
use
unnecessarily
long ducts that
have many
elbows.
DO NOT use
dented or clogged
ducts and vent.
