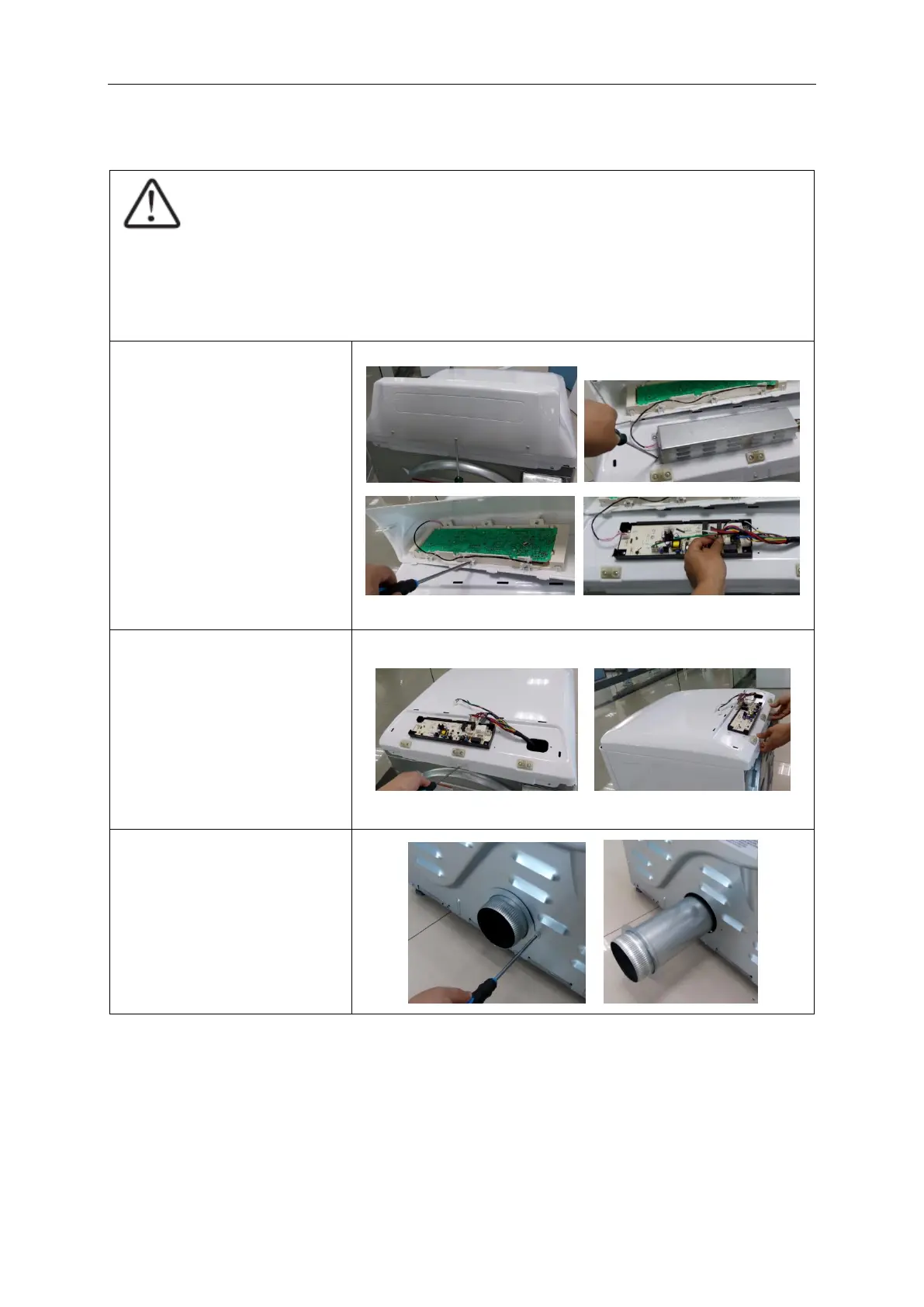

5. HOW TO DISASSEMBLY THE UNIT
Caution
Disconnect the electrical power.
Turn off the gas supply.
1. Remove the control
panel
1.1 Remove the screws
that is used to fix the
control panel with a
screwdrive;
1.2 Remove the screws on
the cover and the PCB
kit;
1.3 Pull out the terminals;
1.4 Take down the PCB kit;
2. Remove the top cover
2.1 Remove three screws
behind the top cover;
2.2 Push off the top cover
3. Take down the back air
outlet
3.1 Remove the screw that
is used to fix the back air
outlet;
3.2 Pull out the rear vent
pipe;
