GAS MODELS ONLY
● Flame sensor resistance < 1Ω
- If resistance is infinity, replace Flame sensor.
● Igniter resistance 40~400 Ω
- If resistance is infinity, replace Igniter.
● Valve1-2: Resistance 1.2KΩ
● Valve1-3: Resistance 0.5KΩ
● Valve4-5: Resistance 1.2KΩ
- If resistance is infinity, replace Valve.
● Thermostat 1 resistance < 1Ω
- If resistance is infinity, replace Thermostat 1.
● Thermostat 2 resistance < 1Ω
- If resistance is infinity, replace Thermostat 2.
The power supply will be off if the temperature
is too high. Then we need to press this red
button on the thermostat to restart the dryer.
10RS
120V
120V 60Hz
25M01A
120V 60Hz

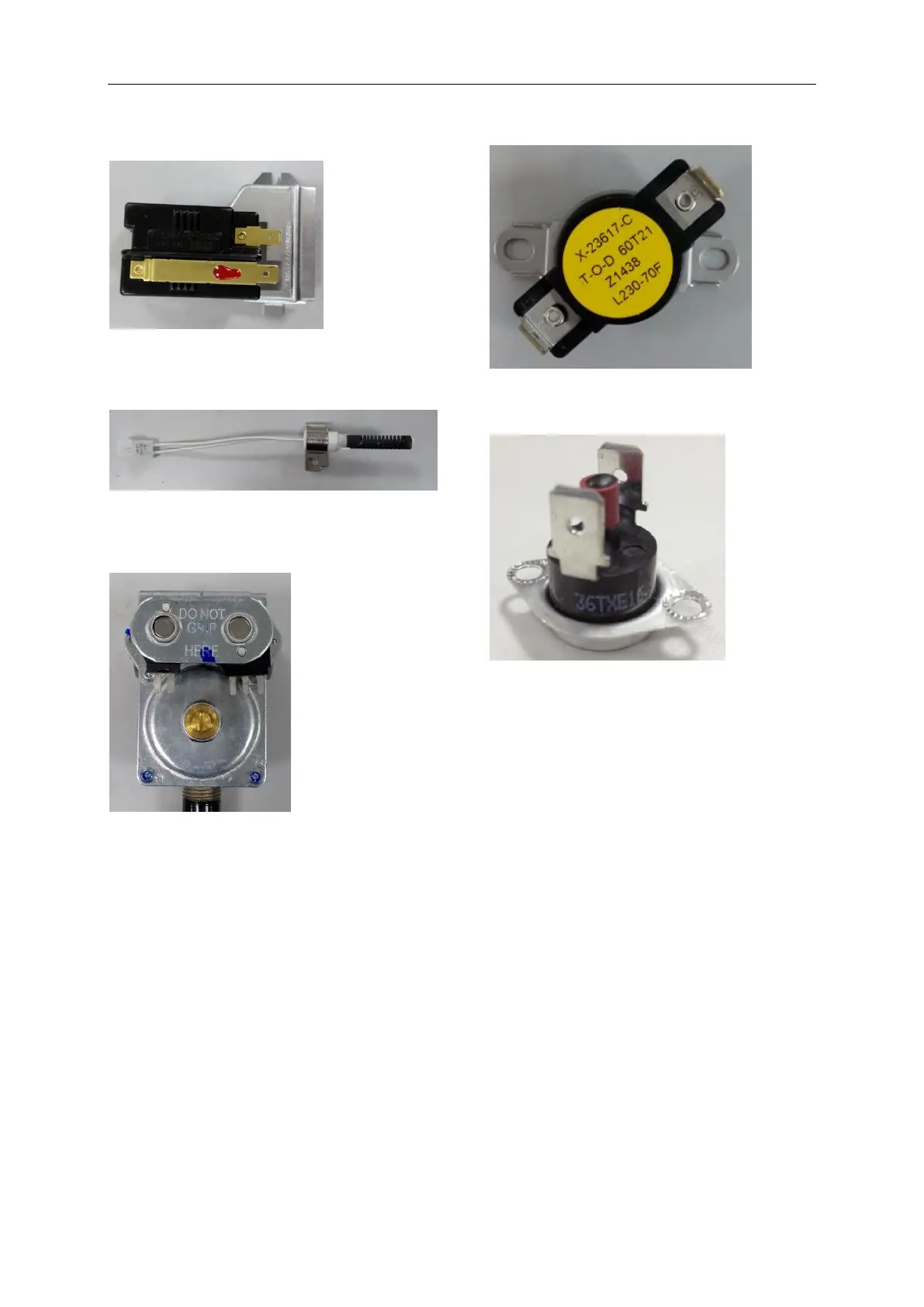

FLAME SENSOR
IGNITER
GAS VALVE
230/160F 25A (60T21)
Hi-Limit
THERMOSTAT 2
175℃, 25A
Thermal cut-off
THERMOSTAT 1
