Installation detail
11

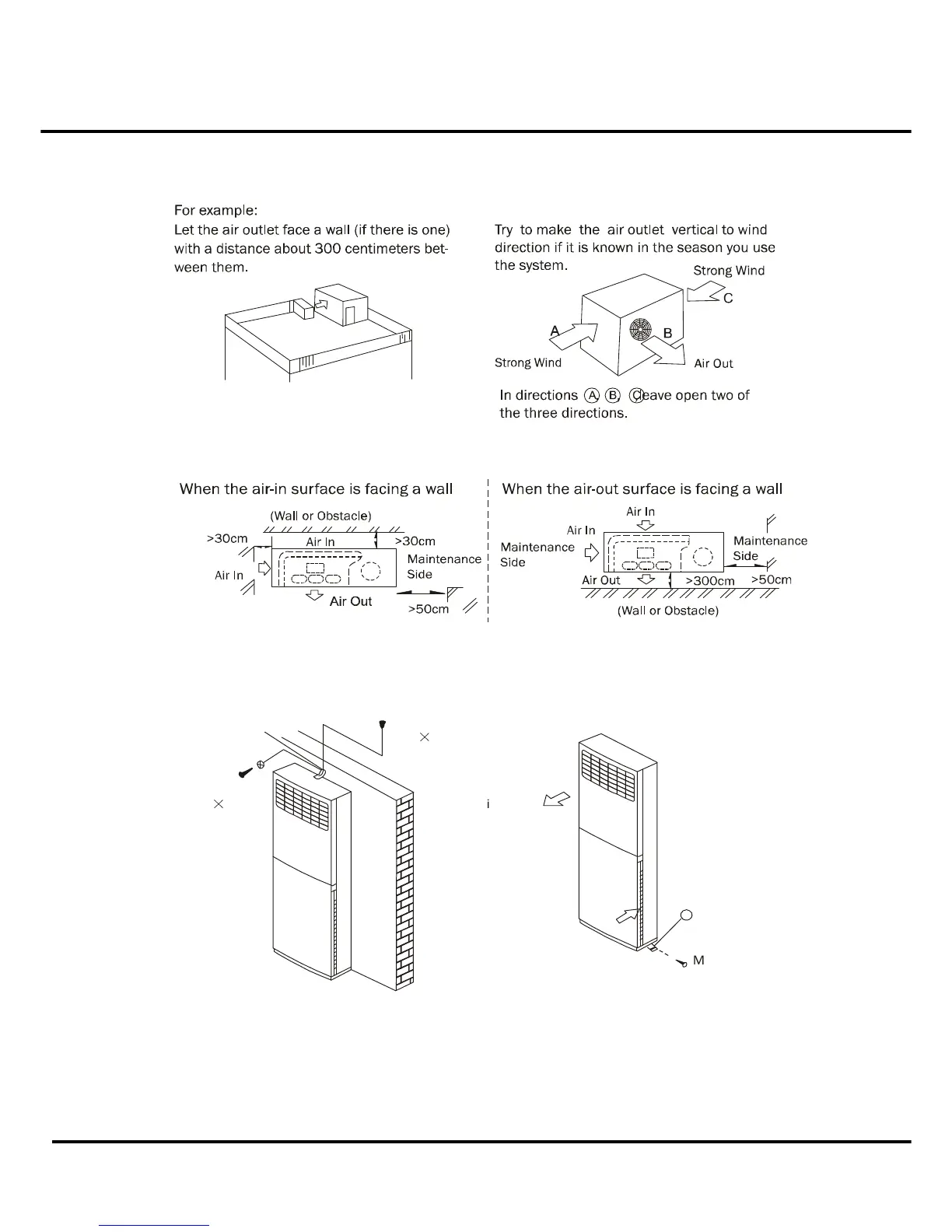

6.1.2.2 If the outdoor unit is to be installed on a roof or where no constructions are
around, you should avoid hard wind blows directly to the air outlet, because it
may cause trouble for air-flow shortage.
6.1.2.3 Reserve enough space for installation, maintenance and unit-functioning.
Remove as many obstacles as possible nearby.
6.2 Installing
6.2.1 To prevent the indoor unit from falling, you must:
Pay full attention to the unit because its long outer shape makes it easy to fall;
)
2
Firmly fix the unit to the wall and in the ground to avoid accidental falling.
6.2.2 Dismounting the air-inlet grid
Please take off the air-inlet grid before connecting the pipes/wires.
Pull down the two knobs on the grid, take off the two screws, then the air-inlet grid goes free.
