8.5.3 Design of the store tank in the system

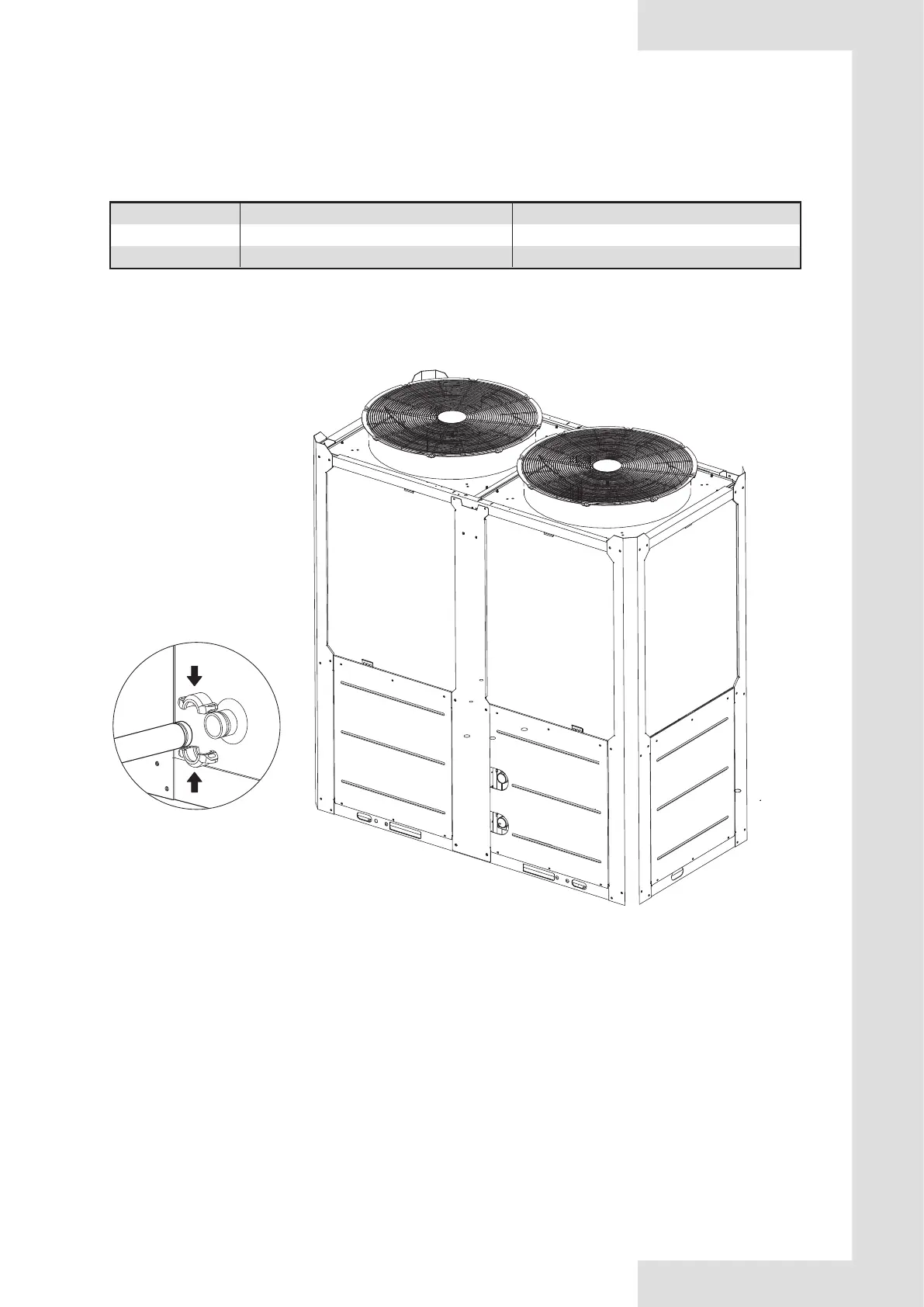

The water inlet and outlet pipes are installed and connected as shown in the following figures. 65KW,110KW model uses hoop
connection. For the specifications of the water pipes and screw thread, see the Table 8-6 below.
Table 8-6
Model
65KW
110KW
Pipe connection methods
Hoop connection
Hoop connection
Specifications of water pipe
DN50
DN65
8.5.2 Connection mode of pipe
kW is the unit for cooling capacity and L is the unit for G, water flow in the formula counting the minimum water flow.
Comfortable air conditioner
G= cooling capacity×3.5L
Process cooling
G= cooling capacity×7.4L
In certain occasion (especially in manufacture cooling process), for conforming the system water content requirement,
it’s necessary to mount a tank equipping with a cut-off baffle at the system to avoid water short-circuit, Please see
the following schemes:
Fig.8-19
