7.2.3 heating pump mode (outdoor unit)
MSG-30HRN1-QB9P,MSG-36HRN1-QB8P
8. Installation details
8.1 Wrench torque sheet for installation
Torque
mm inch Kg.m
φ9.52 3/8 4.2
φ16.0 5/8 6.6
Outside diameter

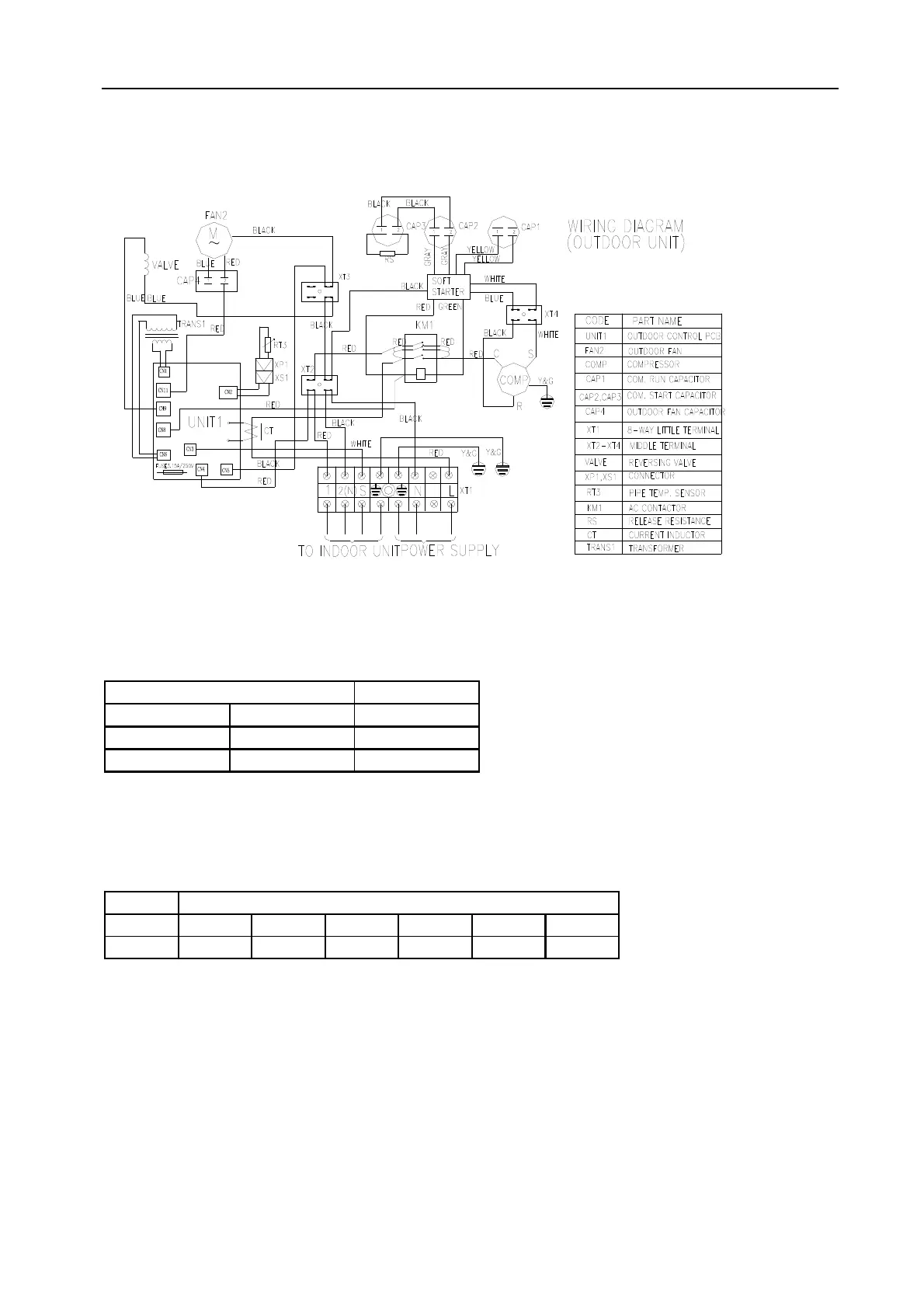

8.2 Connecting the cables
The power cord of connect should be selected according to the following specifications sheet.
Unit 9K 12K 18K 24K 28K 36K
mm2 1.0 1.5 2.5 2.5 2.5
3. 0
Grade
