V6R VRF 50Hz
70
Midea
V6R
Series Service Manual
4 Compressor Inverter Module
4.1 Ports
8-12HP

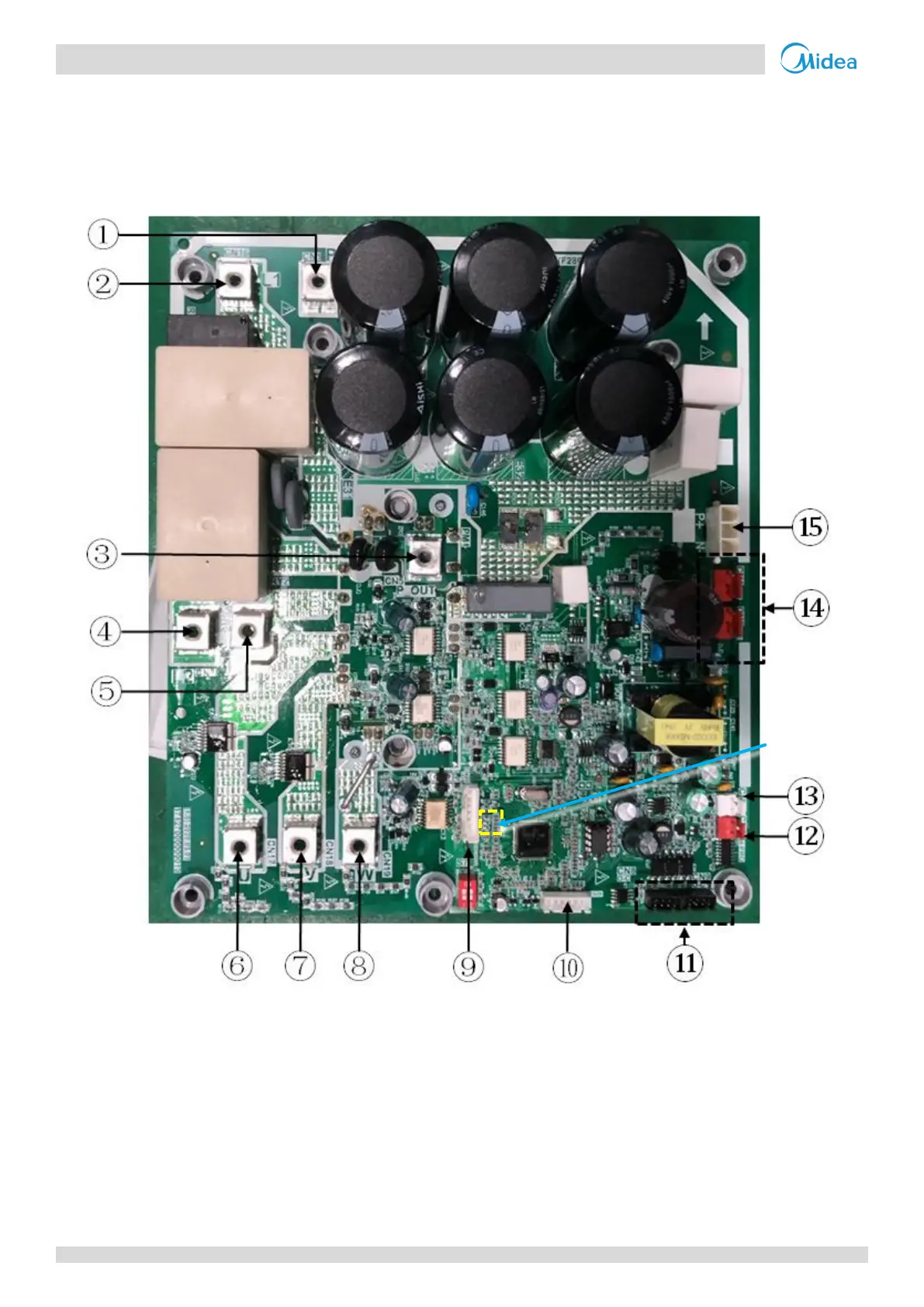

Figure 5-4.1: 8-12HP compressor inverter module ports
1
Notes:
1. Label descriptions are given in Table 5-4.1.
LED
