Service Manual, 2016-12
20 / 39
Rear cover and compressor case
1)Remove by cross screwdriver the screws fixing
back cover plate of compressor chamber
anticlockwise
2)Take the back cover plate of compressor
chamber upward.

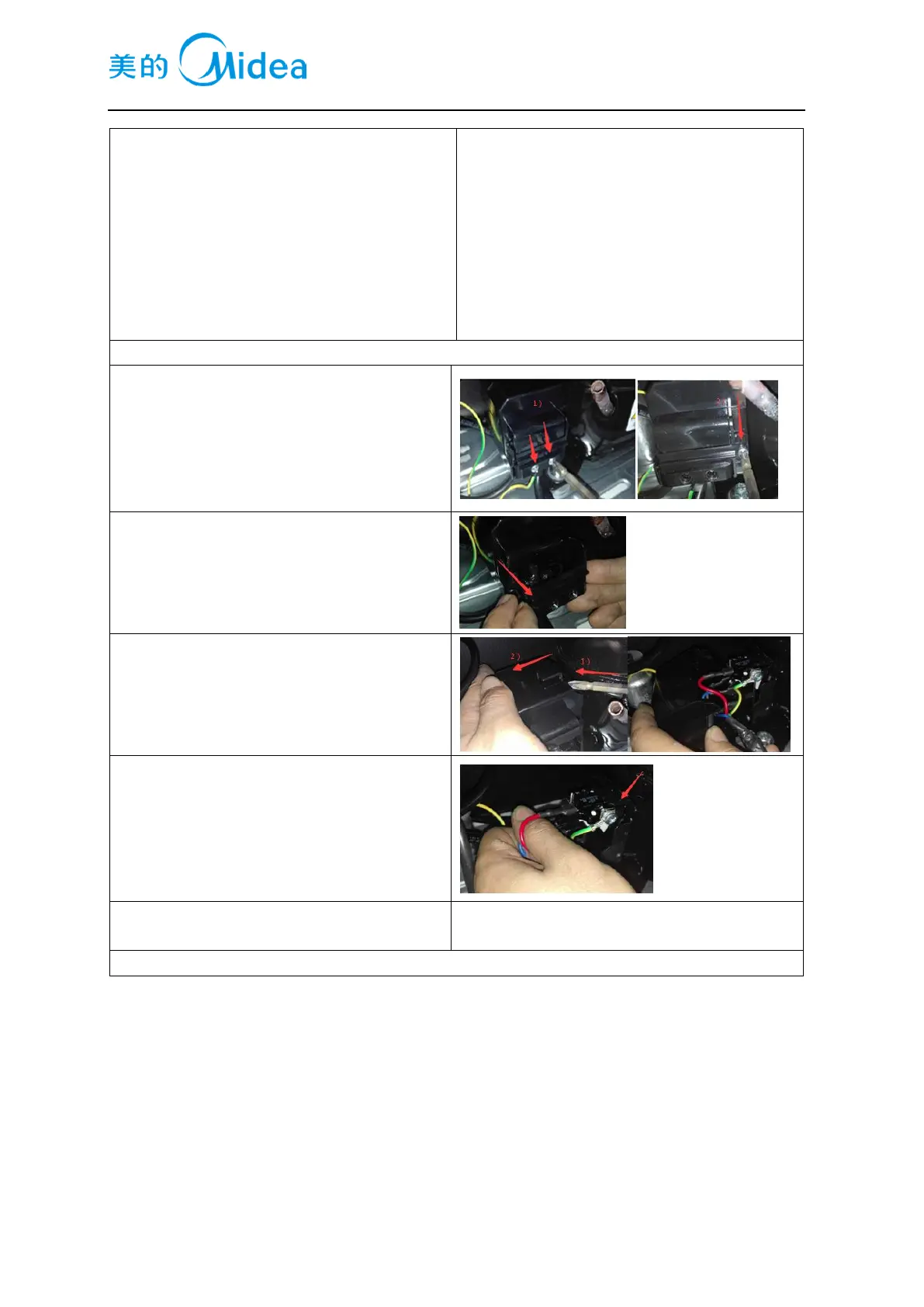

Terminal box of the compressor
1） Remove the screwsTwo screws outsideOne
screw inside
Remove the clipping stripSlowly pull it out
1. Remove the protective cover
1）Pry the protective cover slowly from the upper
part,
2）Pull it out and remove it.
2. Remove the starter
and protector
Unplug the starter and protector (you can use a
screwdriver to pry it slowly)
1. The reverse process can complete
installation.
Piping system in the compressor case
