3. Features
Wide application range
3.1.1 Wide capacity range
The whole product lineup of V4+I series will be from 7HP to 32HP, which is designed to optimize performance
and better match varieties of application requirement. Especially, the integrated designed V4+I series is focus
on providing better air conditioning system solution for the small and middle-sized buildings in the global
market.

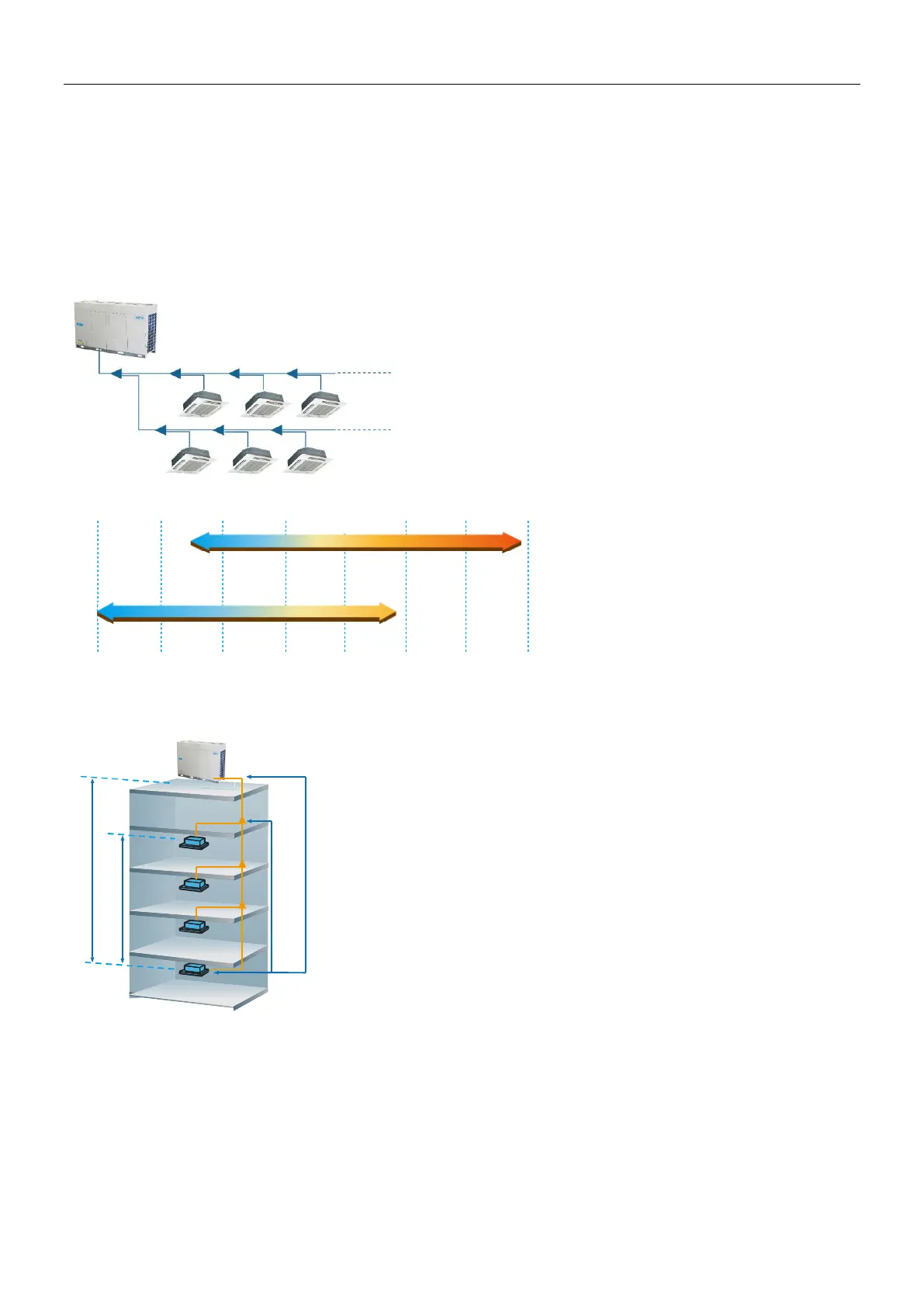

3.1.2 Flexible indoor units connection
3.1.3 Wide operation range
3.1.4 Flexible piping design
Maximum actual piping length 165m
The first branch joint to the farthest IDU 90m
Level difference between IDU and ODU 90m
Level difference between IDUs 30m
Ou
t
door
T
e
m
pera
t
u
re
0
1
0
2
0
3
0
4
0
5
0
-
1
0
-
2
0
C
OO
L
I
N
G
M
O
D
E
H
E
A
T
I
N
G
M
O
D
E
Outdoor temp. °C(D.B.)
48°C
24°C
-15°C
-5°C
Ou
t
door
T
e
m
pera
t
u
re
A 32HP outdoor unit supports up to 53 indoor units, freeing up
considerable space outside, use your backyard more wisely with much
more space available created by less number of outdoor units.
 Maximum 53 indoor units for a 32HP outdoor units installation
 Maximum 50 indoor units for a 30HP outdoor units installation
 Maximum 46 indoor units for a 28HP outdoor units installation
 Maximum 43 indoor units for a 26HP outdoor units installation
V4+I series offers an extended piping length of 165m (190m
equivalent piping length) with a total system piping length of
1,000m.
In case the outdoor unit is located above the indoor unit the height
difference between outdoor unit and indoor unit is up to 50m.
In case the outdoor unit is located below the indoor unit the height
difference between outdoor unit and indoor unit is up to 90m.
The longest piping length is 40m standard. It can be extended to
90m*.
*For more information, please contact your local Midea dealer.
The V4+I series system operates
stably at extreme temperatures
ranging from minus 15°C to 48°C.
