Midea VRF V4 Plus I Series - 3. Installation Space

MCAC-VTSM-2014-04 R410A DC Inverter VRF V4 Plus Individual Series 50Hz
Installation 65

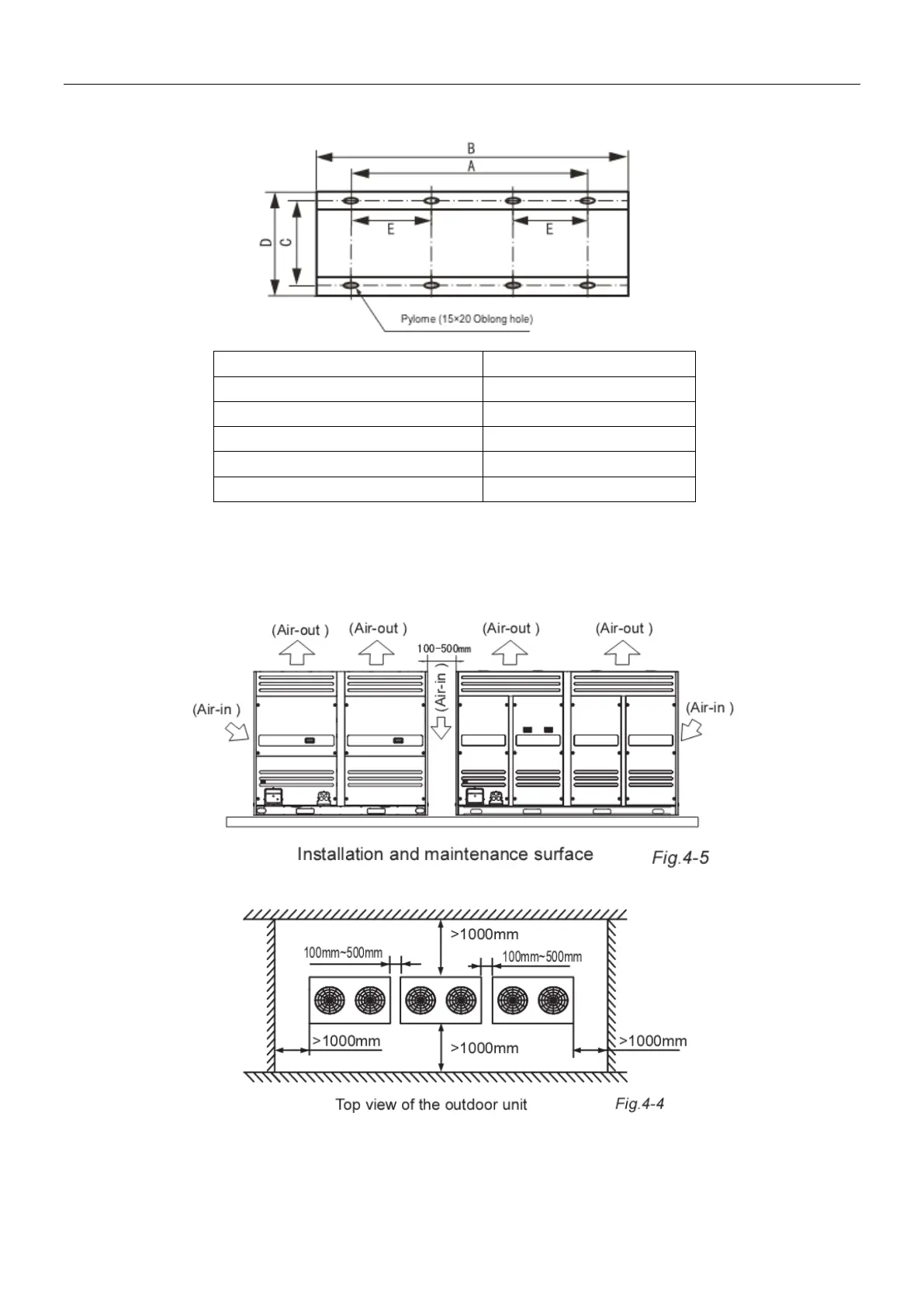

 Distance between foot screws is shown as follow. The spacing between the two cement piers shall not be
exceeded over than 650mm.
Size (mm)
26/28/30/32HP
A
2410
B
2540
C
736
D
765
E
950
3. Installation space
 Ensure enough space for maintenance. The modules in the same system must be on the same height.
 When installing the unit, leave enough space for maintenance.
