Chapter 1: Before You Begin
Assembly of the GRX-3080
The GRX-3080 Battery Diagnostic Station is shipped in two
pieces: The cart and the charge engine.
Assemble the Cart
1. For easy shipping the cart is shipped in a partial as-
sembled way. Please refer to the Instruction sheet that
comes with the package on how to safely assemble.
2. Mount the charge engine on the cart and x it with a
bolt at the back. Tighten the bolt securely.

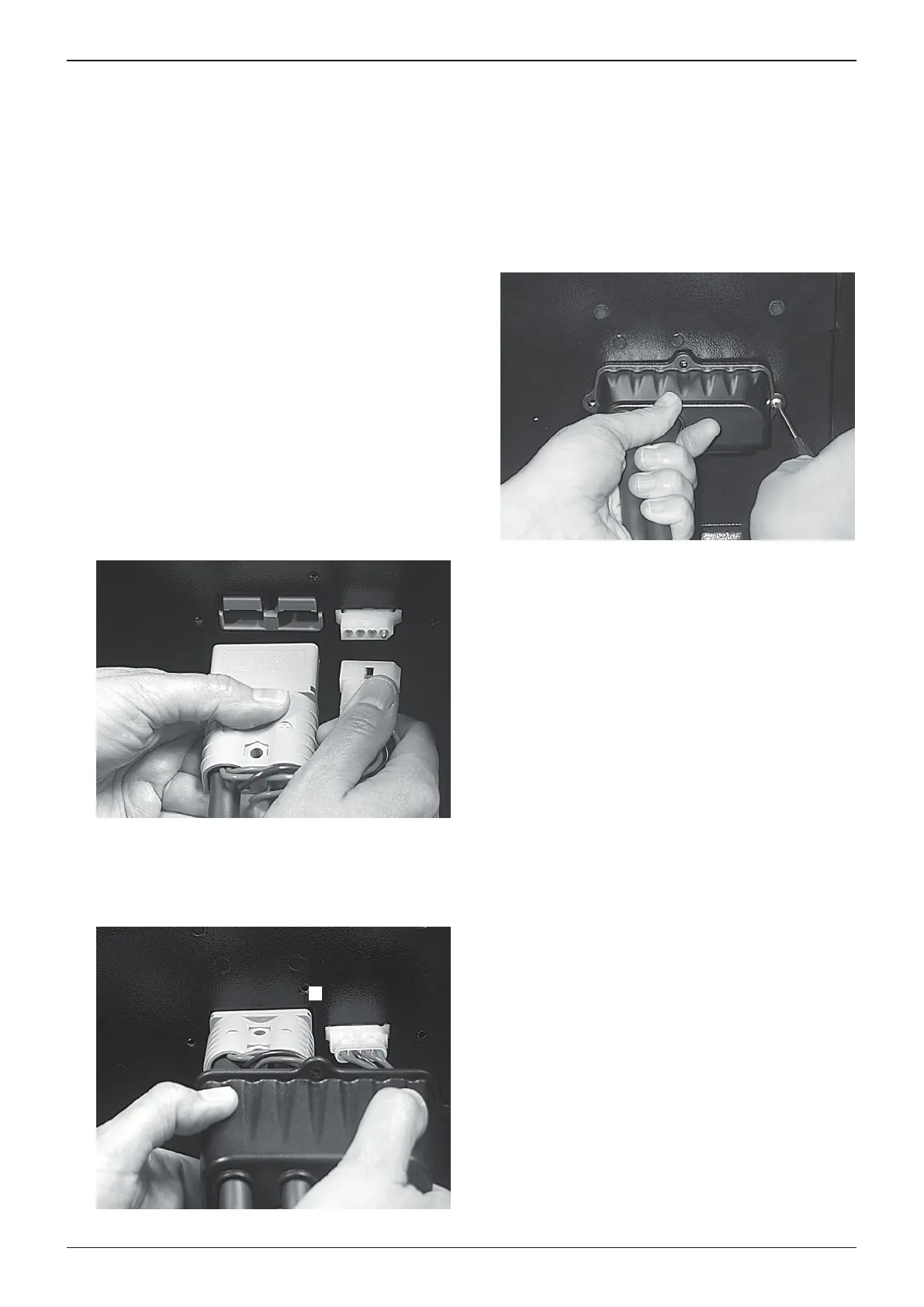

Attaching the Charger Cables
The two connectors for the charger cables are located on
the back of the unit. Three screws are included to secure the
cables. To attach the cables:
1. Plug the small connector into the small socket (A) on the
back of the unit.
2. Plug the large connector (B) into the large socket while
placing the protective cover (C) against the back of the
unit.
3. Center the three holes in mounting bracket over the
bolts, and lower the bracket onto the charger. Reinstall
the hardware in this order: the at washer rst, the lock
washer next, and the hex nut last. Tighten the nuts se-
curely.
4. Insert the screws through the holes in the cover and and
securely tighten the screws.
The installation is now complete.
Attaching the Power Cord
Plug in the power cord on the back of the unit
.
Connecting to AC Power
Plug the charger into a dedicated, grounded nominal 16-
amp or higher AC outlet. Press the power switch to the ON
position.
