Chapter 2: Overview

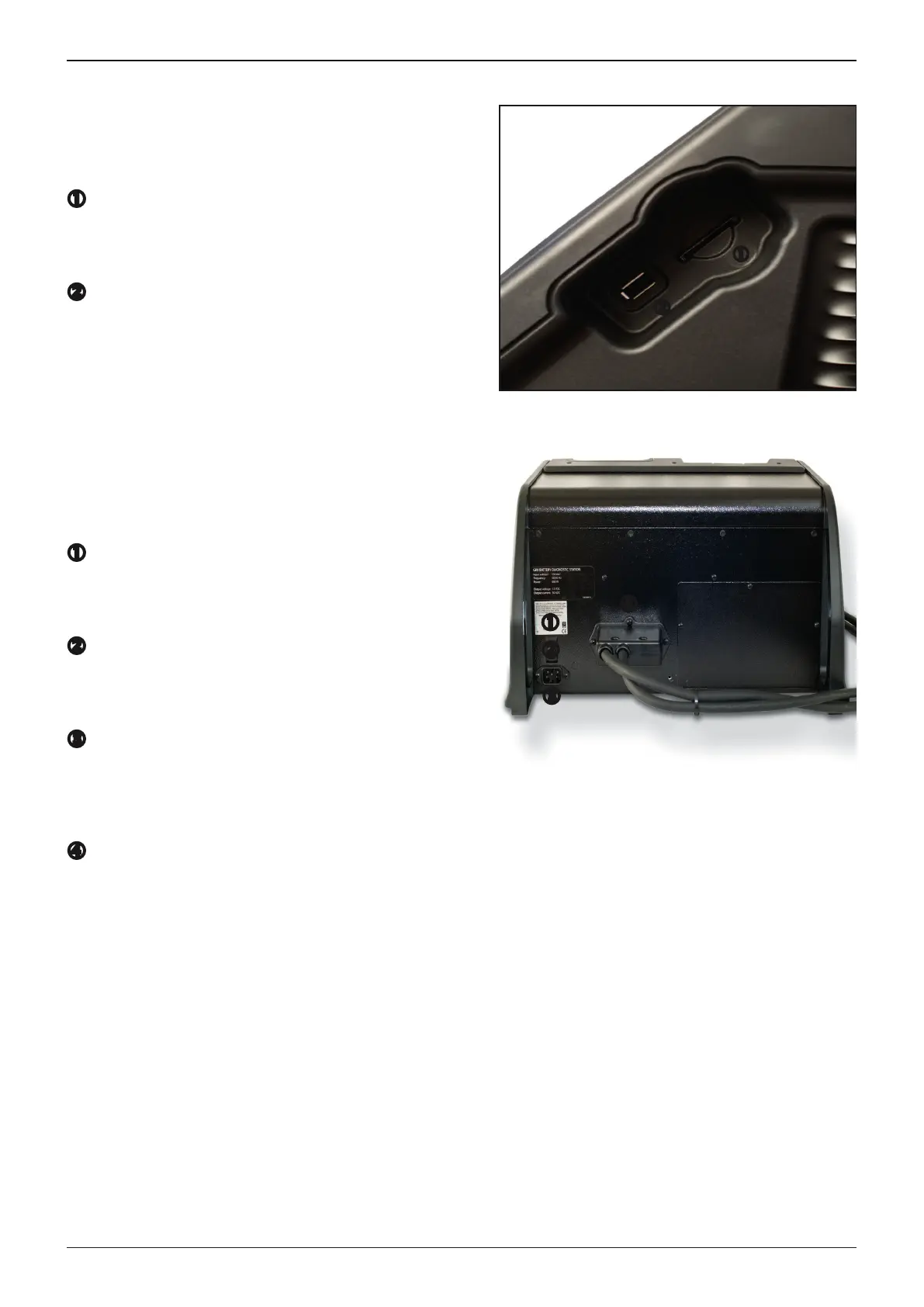

GRX Battery Diagnostic Station: Side View
On the right side of the unit you can nd an SD card slot
and mini USB connection.

Data Card slot
Available for future software updates and data storage.

USB slot
Hardware prepared, functionality to be dened.
GRX Battery Diagnostic Station: Rear View
In addition to containing the outlet for the charger cables
and power cord, the back of the unit is the location for
the serial number label and the ON/OFF switch.

Serial Number Label
The serial number of the unit.

ON/OFF switch
Switch the unit on or o.

AC Power cord
Connection for a grounded nominal 220 VAC outlet
power cord. (2.4 meter in length)

Charger cable with Kelvin connection
Connection to the battery under charge.







Midtronics GRX-3080 JLR EU Specifications

General

Brand	Midtronics
Model	GRX-3080 JLR EU
Category	Diagnostic Equipment
Language	English
