Midtronics GRX-5100 Quick Training Guide

2001 – 2009 Pruis
Step 6 of the charging process for the 2001-2003 Pruis and the 2004-2009 Pruis
differs slightly from other Toyota hybrid models.
For these Pruis models, the low voltage cable includes not only the green EV
bonding cable, but also a communications cable that connects to the battery ECU.

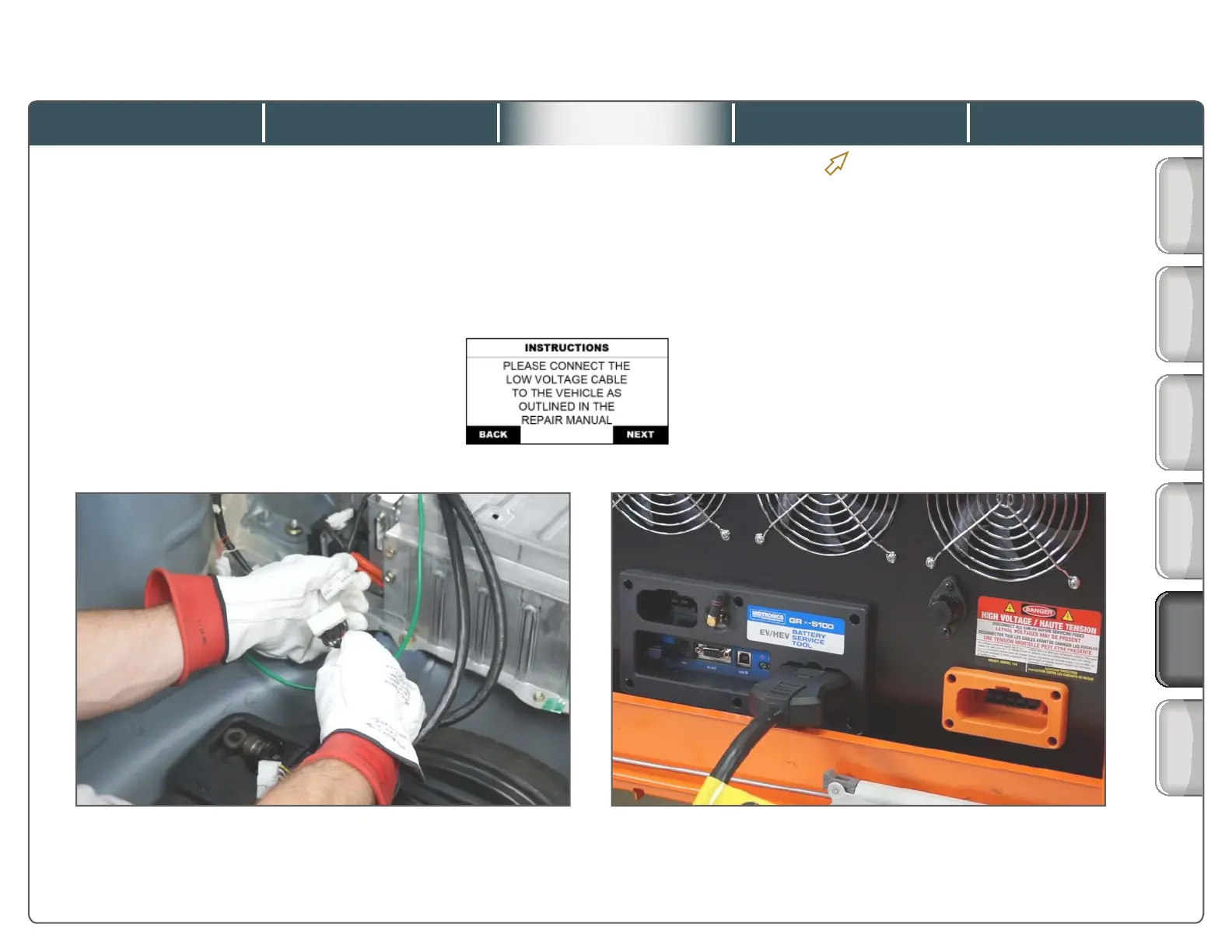

Therefore, when this screen appears,
connect the low voltage cable as
instructed in the Repair Manual, then
connect the other end to the GRX-5100.
GRX-5100 Cable Connections
Click the tabs at the top and side to view each section
Charging ProcessHEV Workstation
2004 – 2009 Pruis shown
Battery
Condition
Before
Servicing
Process
Overview
Battery Charge
Active Test
Toyota NiMH Battery Rescue Charging with the GRX-5100
Quick Training Guide QT015A
Screens:
Part 2
2001-2009
Prius
Screens:
Part 1
14 of 21
©Toyota Motor Sales, U.S.A., Inc., December 16, 2015
