• 21 •

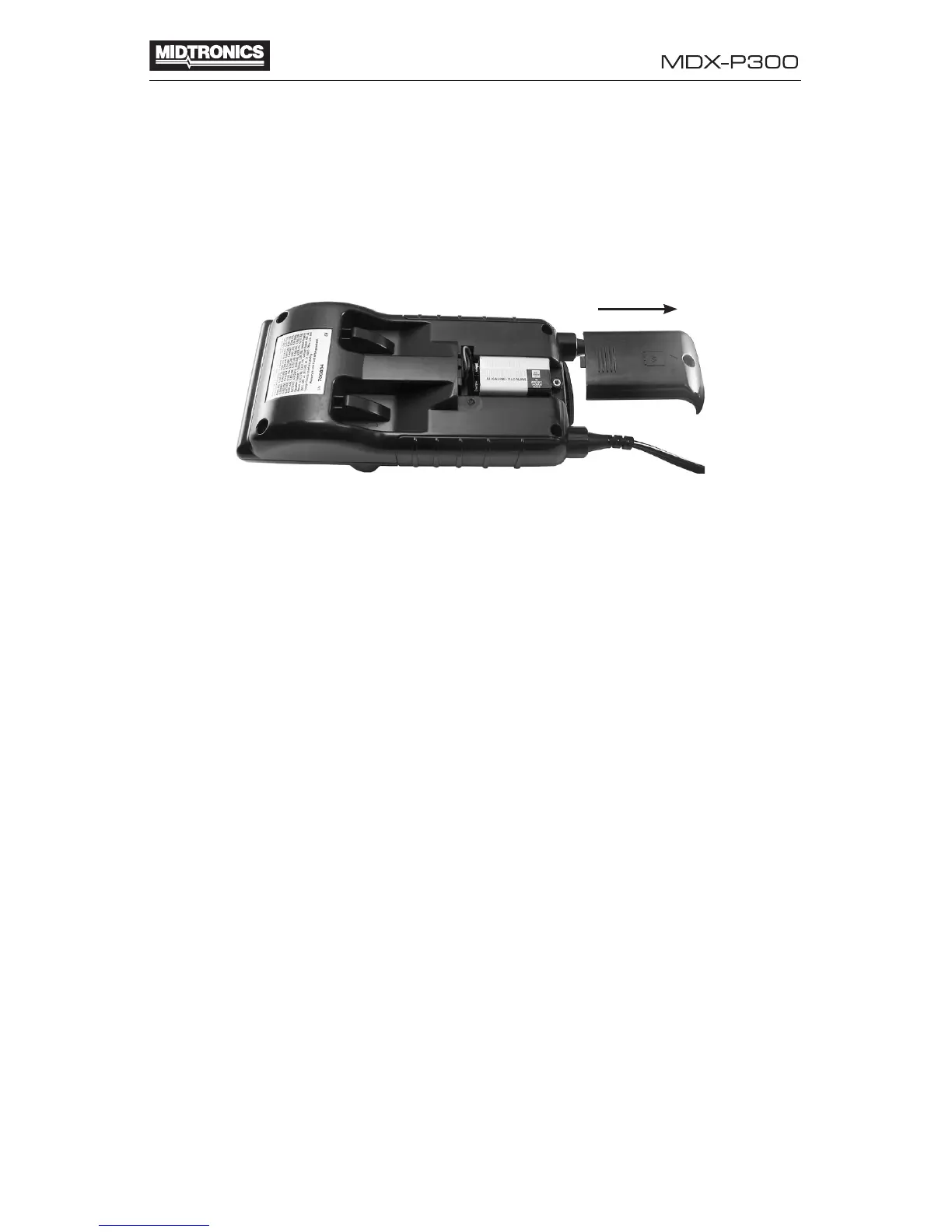

3. Slide the door off as shown in the illustration.
4. Remove the discharged battery.
5. Insert a 9-volt battery as shown below, making sure the positive and
negative terminals are positioned correctly.
6. Reposition the cover and tighten the screw.
Model:
• MDX-P300
Display:
• LCD graphics display
Temperature Compensation:
• Tester-prompted
Operating Temperature:
• 0 ˚F to 120 ˚F / -18 ˚C to 50 ˚C
Test Range:
•
100–1400 CCA, 100–1400 SAE,
100–550 DIN, 100–900 EN,
JIS (72 numbers)
Built-in Printer:
• Powered by battery under
test
Voltage Range:
• Tests 12-volt batteries down
to 1 volt
Cable Length:
• 21 in / 533.4 mm
Power Requirements:
• Uses power of battery
under test or 9-volt battery
Voltmeter:
• 0 to 30 Vdc +/- 0.05 Vdc
Languages:
• English
• Spanish
• French-Canadian
• Japanese
Housing Material:
• Acid-resistant ABS plastic
Dimensions:
• 9 in x 4 in x 2.5 in
• 230 mm x 102 mm x 65 mm
Weight:
• 1.16 lb / 499 g
Specifications
slide the door in this direction
