Miele 09862980 - Combination Installation with an Oven into a Tall Cabinet

Installation diagrams
96

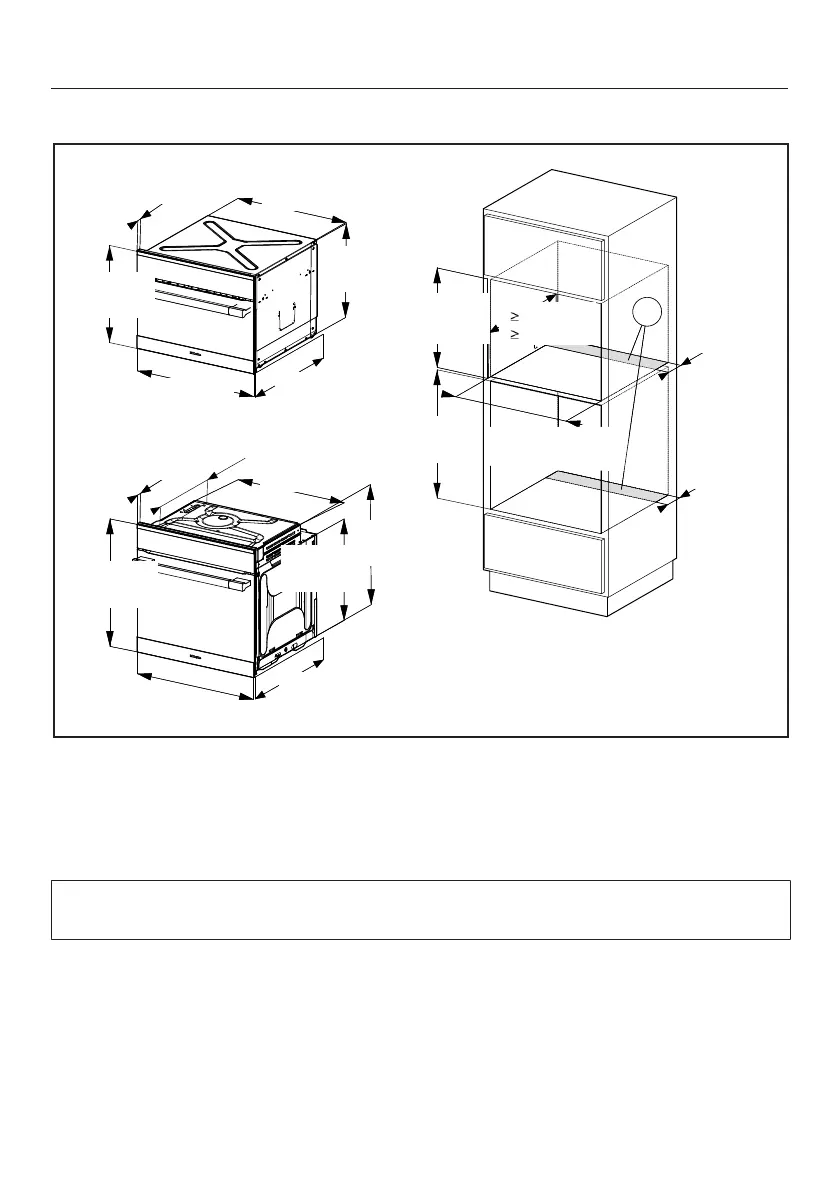

Combination installation with an oven into a tall cabinet
7/8"
(22*/23** mm)
22 1/16"
(560 mm)
17 1/2"
(445 mm)
21 9/16"
(549 mm)
23 7/16"
(595 mm)
17 15/16"
(455 mm)
7/8"
(22*/23** mm)
16" (407 mm)
21 11/16"
(551 mm)
22 11/16"
(577 mm)
20 1/16"
(510 mm)
21 1/2" (546 mm)
23 7/16"
(595 mm)
23 7/16"
(596 mm)
A A
4"
(100 mm)
4"
(100 mm)
23 3/8"-23 7/16"
(593-595 mm)
17 3/4"-17 13/16"
(450-452 mm)
22 1/16"-22 3/8"
(561-568 mm)
21 5/8"
( 550 mm)
 Cut-out (4" x 22" / 100mm x 560mm) in the bottom of the cabinet for power
cord and ventilation
* Oven with glass front
** Oven with metal front
Depending on the model, the oven front may differ from the one shown the
drawing. Current specifications can be found on the Miele website.
