Installation
42
P

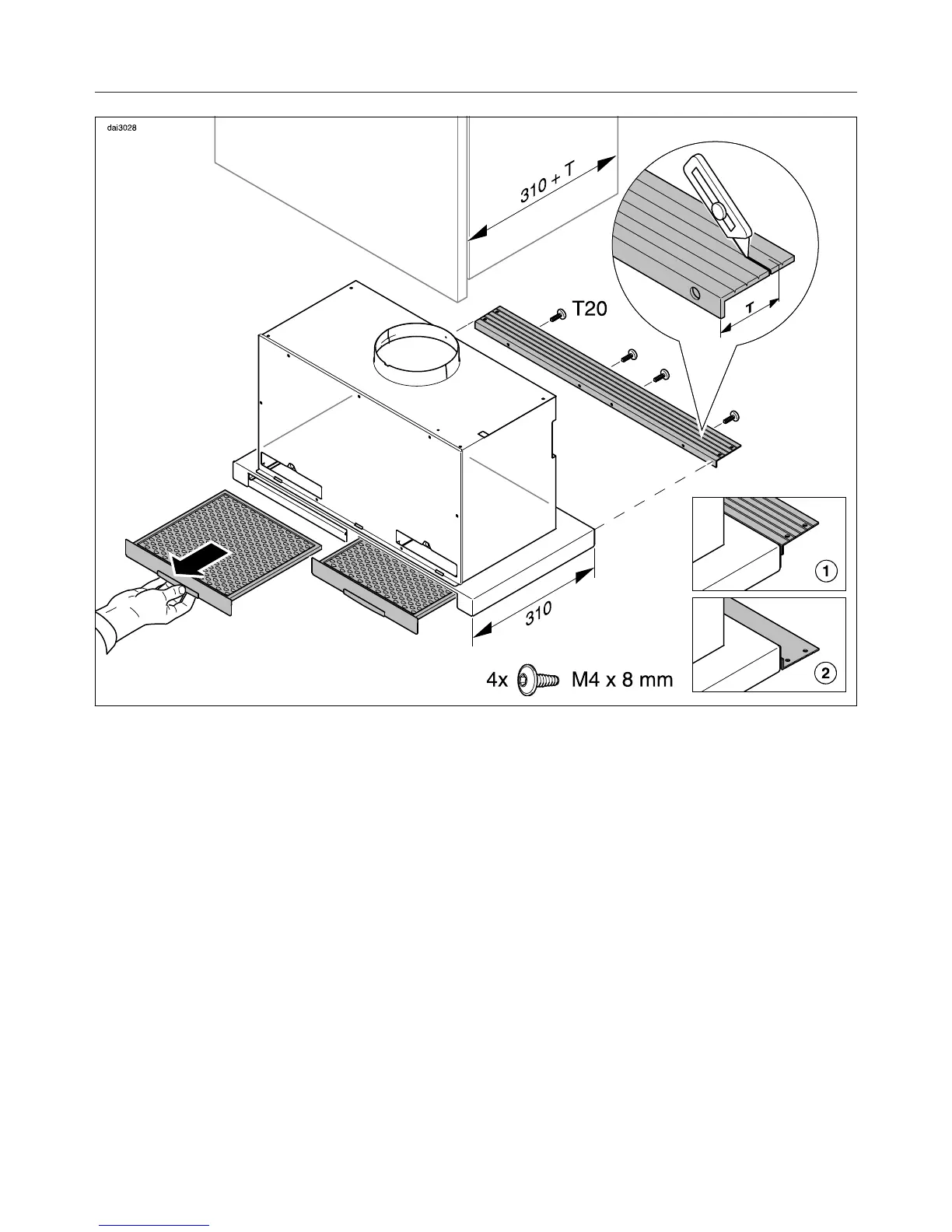

ull the grease filters out of the slots
in the front of the rangehood housing.
The spacer strip needs to be attached
t
o the back of the rangehood housing
before the rangehood is installed in the
wall unit. The spacer strip can be
attached to the upper or lower edge
of the deflector plate.
C
alculate the measurement T for the
spacer strip
Cut the spacer strip t
o measurement
T. Score along the groove for the
smaller measurement as shown, and
remove the surplus.
Scr
ew the spacer strip to the back of
the rangehood at the required
position. Use the screws supplied. To
attach the spacer strip to the lower
edge , use the screws previously
removed from the housing unit.
