Miele H394B - Automatic Door Lock (Self Clean Models Only); Door Locking Components (Self Clean Models Only)

Technical Information
29
Master Chef Ovens
4.16 Automatic Door Lock (Self Clean Models Only)
When the Self-Cleaning program begins, the Door Lock Motor activates
and locks the door. The door cannot be opened until the temperature
drops below 398
0
F (200
0
C).

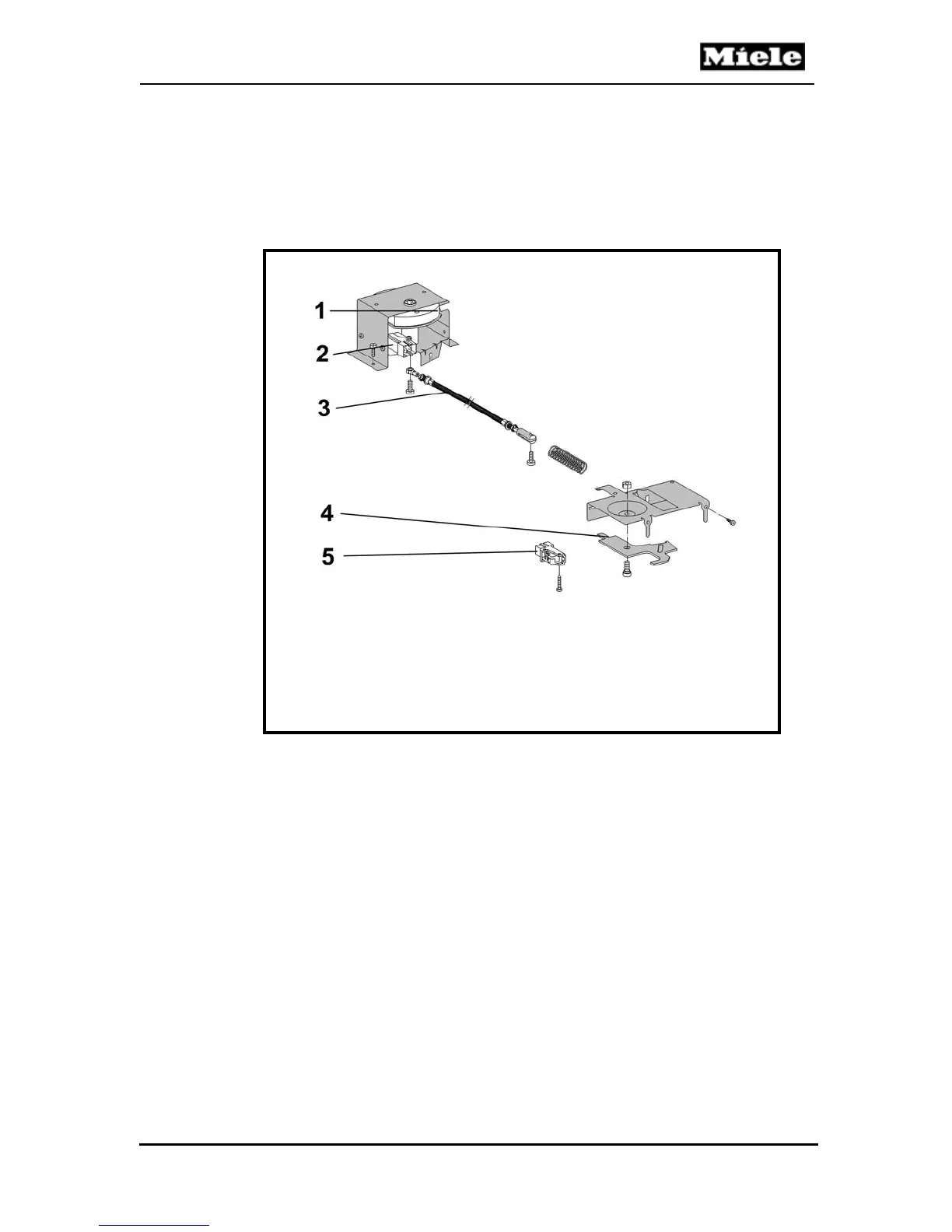

1. Door Lock Motor (M23) 120V/5W
2. Interlock Switch (1S60)
3. Cable Assembly
4. Door Latch
5. Interlock Switch (2S60)
Figure 4-6: Door Locking Components (Self Clean Models Only)
