Miele H398B2 - Door Hinge(S) - Removal; Door Hinge Removal

Technical Information
57
Master Chef Ovens
5.33 Door Hinge(s) - Removal
1. Remove the Front Door (Section 5.2).
2. Remove the Front Door Outer Glass Pane (Section 5.30).
3. Remove Hinge Fastening Screws (Figure 5-25 Item1
4. Remove the Hinge from the Door Frame.
5. Repeat for opposite side.

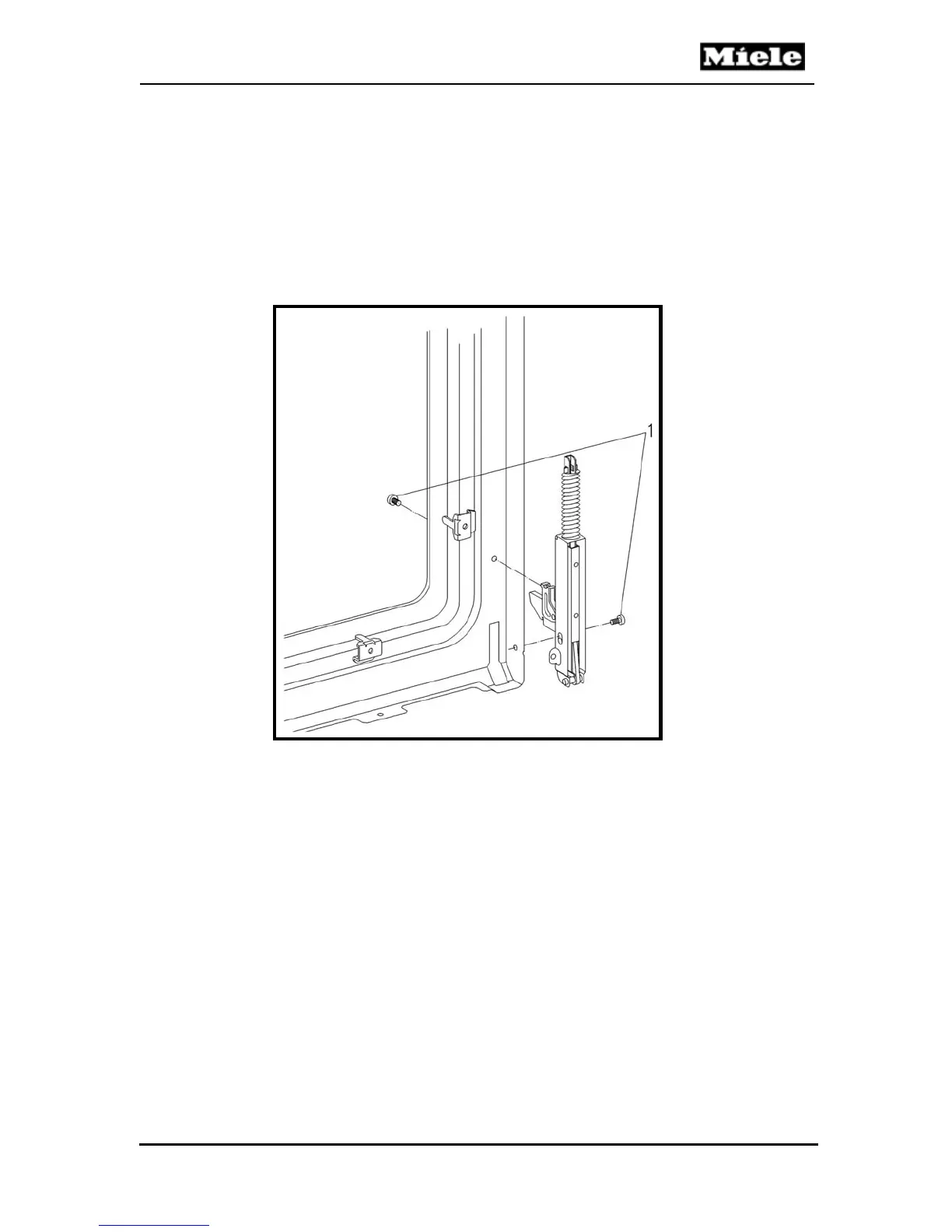

Figure 5-25: Door Hinge Removal
