Miele HR 1421 - BTU-Reducing Kit Dimensions (HR 11 xx)

All Gas Range dimensions
36
All Gas Range HR 11xx with BTU-reducing kits
(M Pro Power - Zero Gap; M Pro - Décor Hood)
HR 1124, HR 1134, HR 1135, HR 1136
For Miele Range-Hoods and Miele Range-Décor Hoods:
If a BTU-reducing kit is necessary, an authorized installer is required to modify
the product to meet ANSI Z21. Jets are a standard accessory and are getting
changed during installation, see "Combination Range with BTU-reducing kit".
2

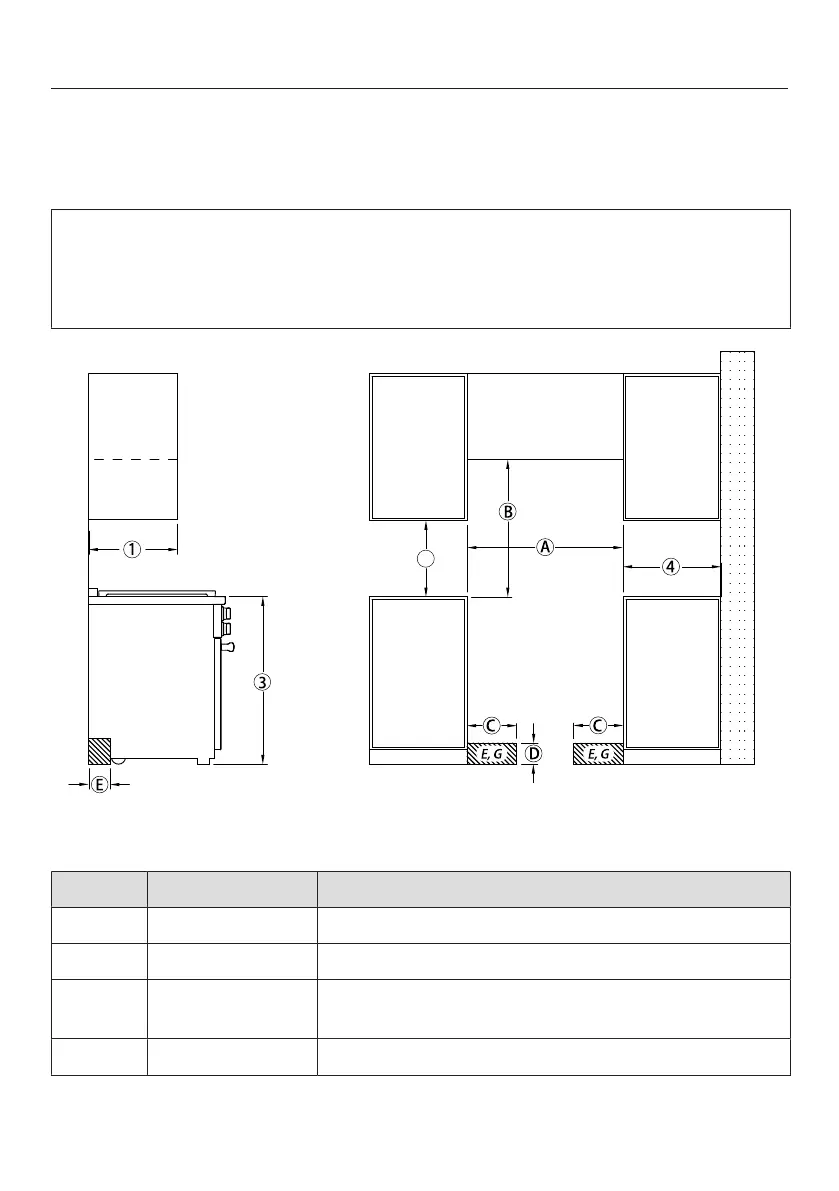

, ,  The shaded area represents the installation area for the connections:
E = Electrical connection, G = Gas connection
Position Dimensions Description
 13" (330mm) Maximum depth of top cabinet
 18" (457mm) Minimum distance to bottom edge of top cabinet
 35 1/2"–37"
(901–940mm)
Distance from the floor to cooktop surface
 10" (254mm) Minimum distance to combustible surfaces.
