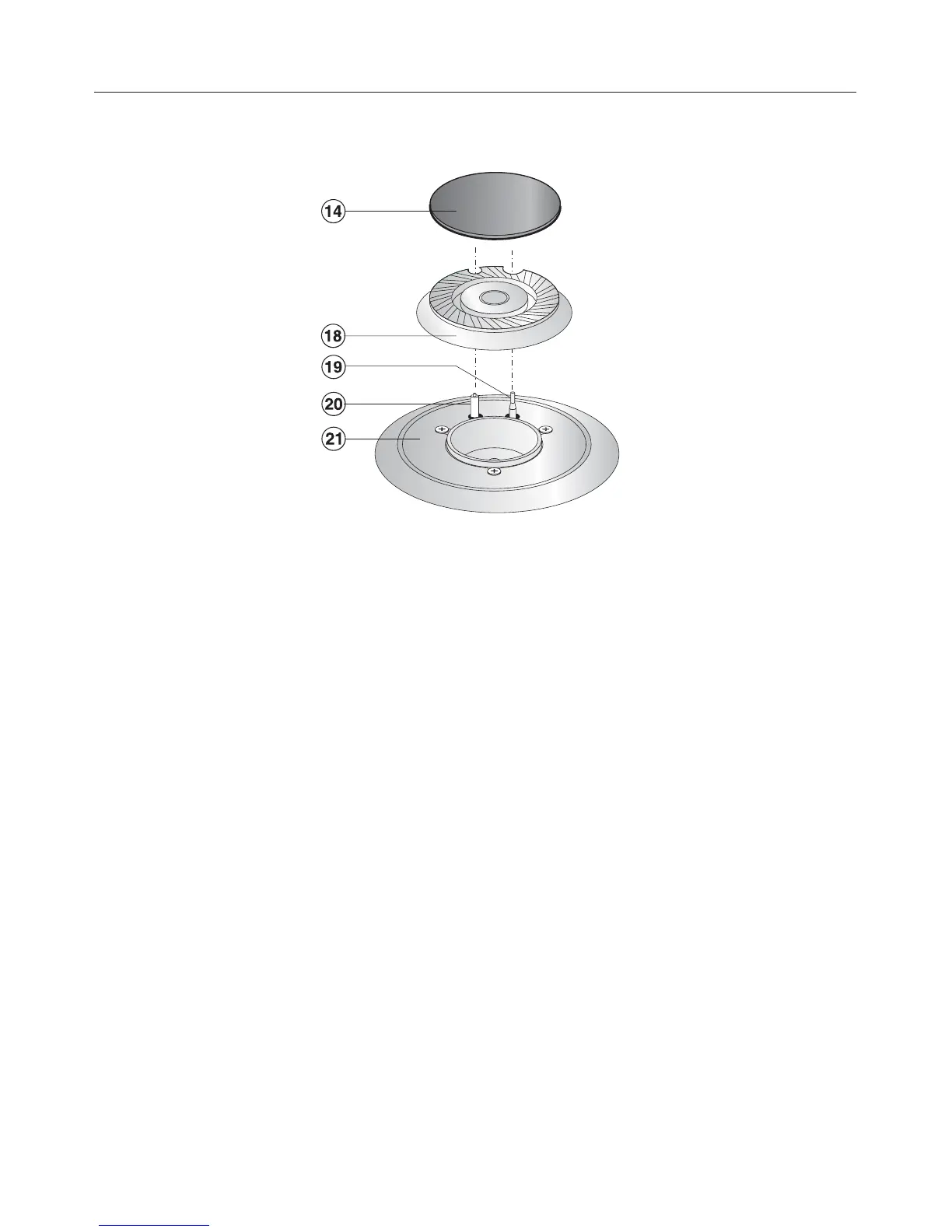

To assemble the small, medium, large and extra large burners
^ Place the burner head r on to the burner base u so that
the ignition safety device s and the ignitor t extend
through their respective holes in the burner head. The
burner head must click into place correctly.
^ Replace the burner cap n ensuring that the locating tabs
fit into the notches in the burner head r.
Important: replace parts in the correct order after cleaning.
Cleaning and care
29
