Bottom cover panel
32
Measures must be taken to ensure that
it is not possible to touch the underside
of the installed cooktop.
For this reason, a front cover panel and
bottom cover panel must be installed if:
– The cooktop is wider than the oven
installed below it.
– The cooktop and the oven below it
are installed with an offset.

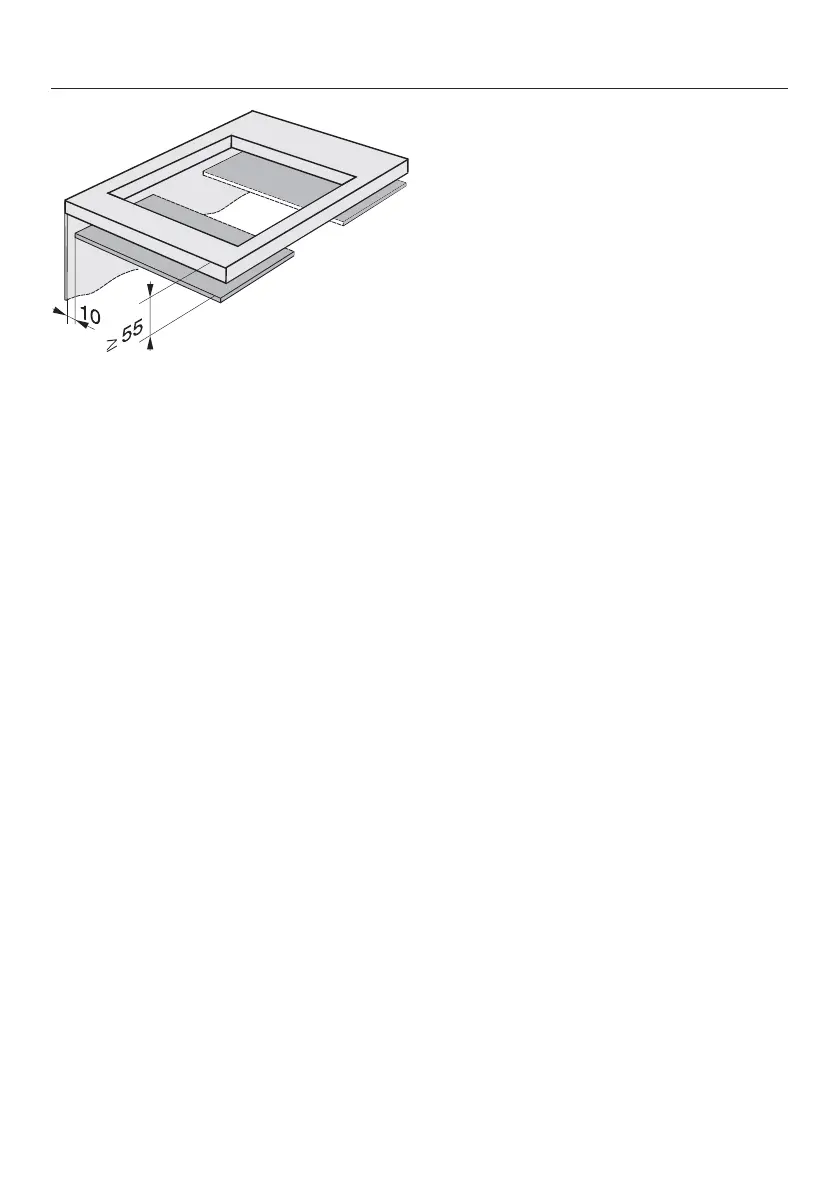

The distance from the top edge of the
countertop to the bottom cover panel
must be at least 55mm.
An air gap of 10mm must be
maintained between the bottom cover
panel and the rear wall.
