Application technology
42

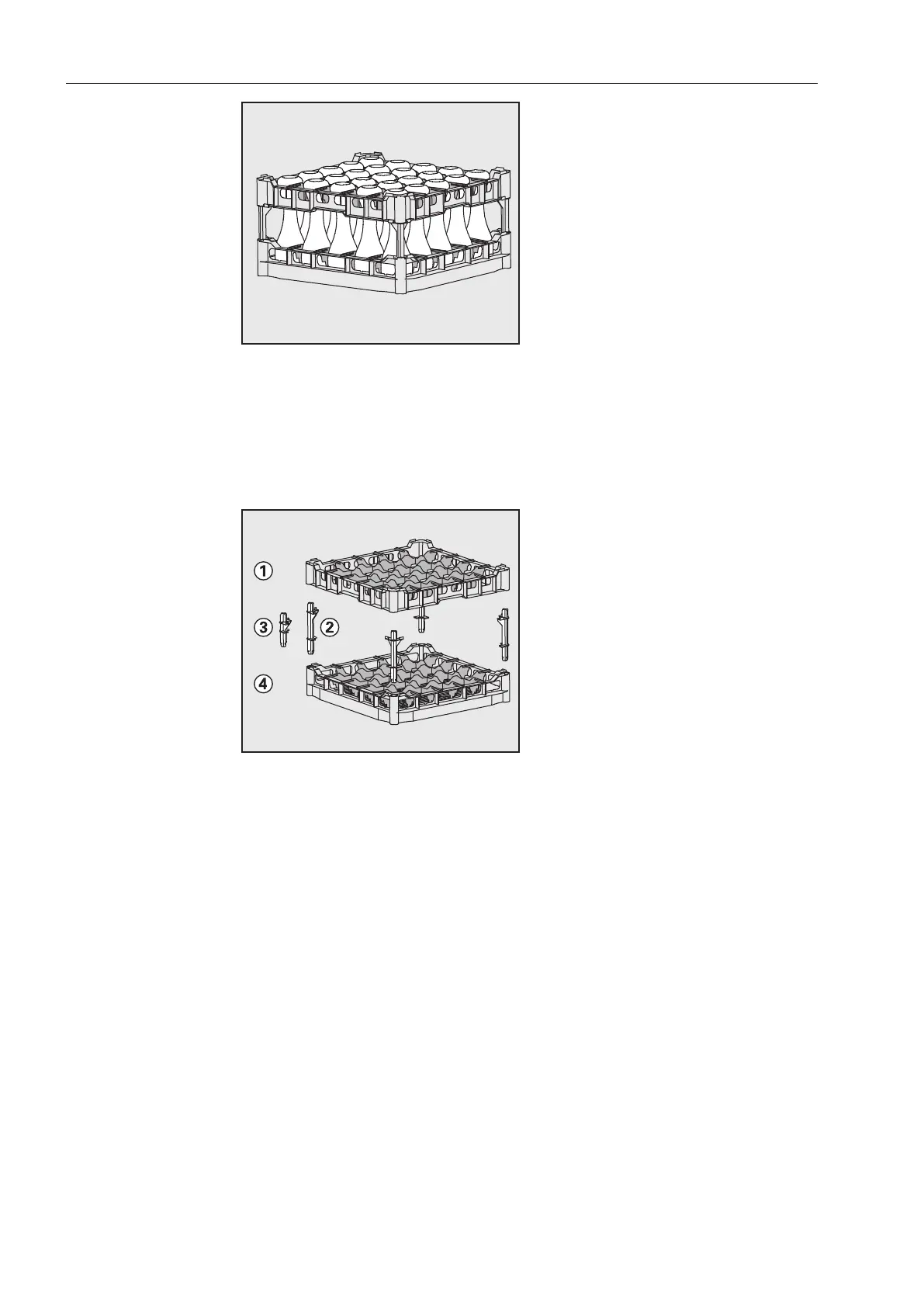

U 534 - U 537 plastic trays with compartments for different glass heights
In this example the plastic tray is connected to the top frame by long
extenders.
(for assembly in U 876 lower basket carrier only)
Assembling a
plastic tray
The height of the tray can be altered by fitting a top frame to the
base with long or short extenders.
Push all four extenders into the base basket .
Press the top frame securely onto the extenders.
