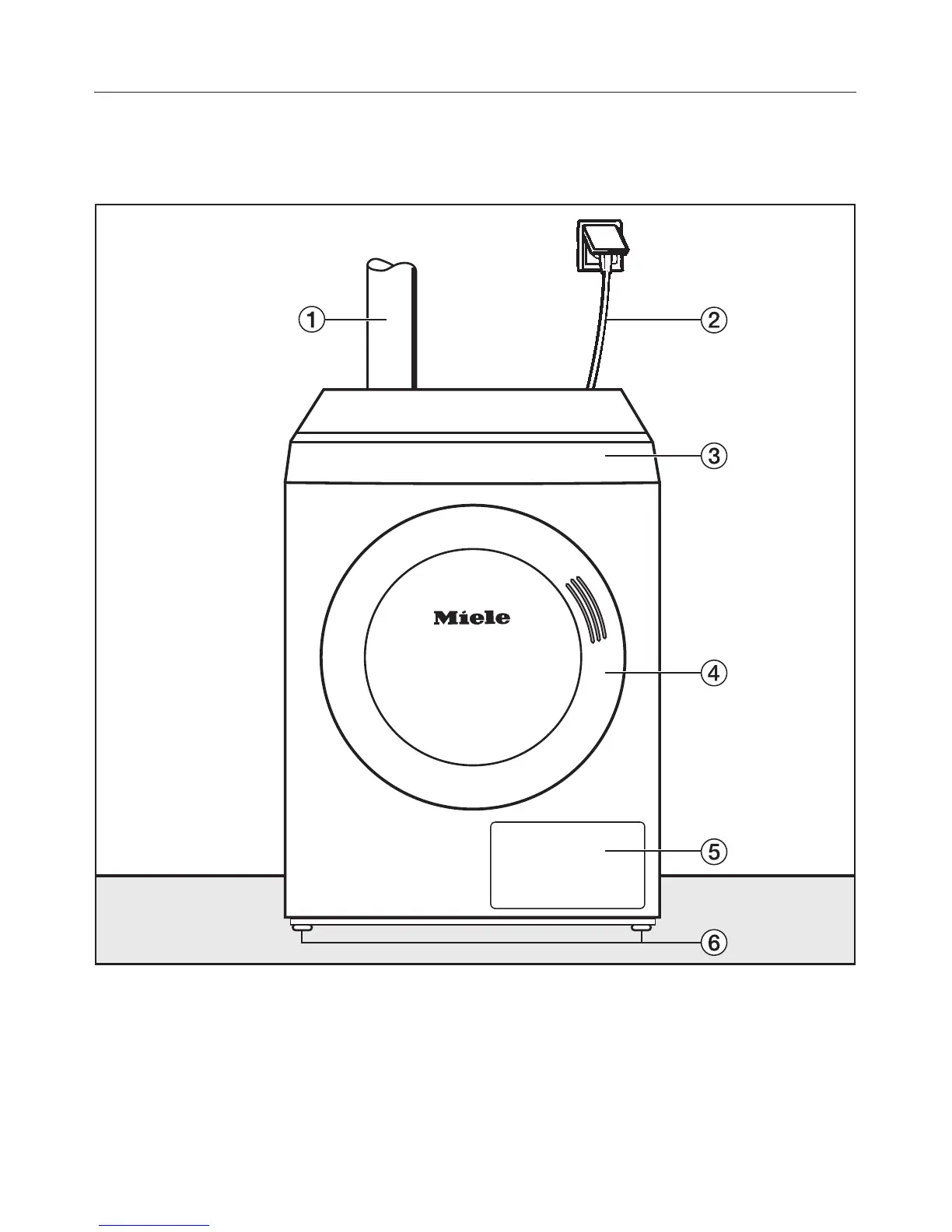

Front view
a Vent ducting
b Mains connection cable
c Control panel
d Door
e Filter access panel
f Four height adjustable screw feet
Installation and connection
42
