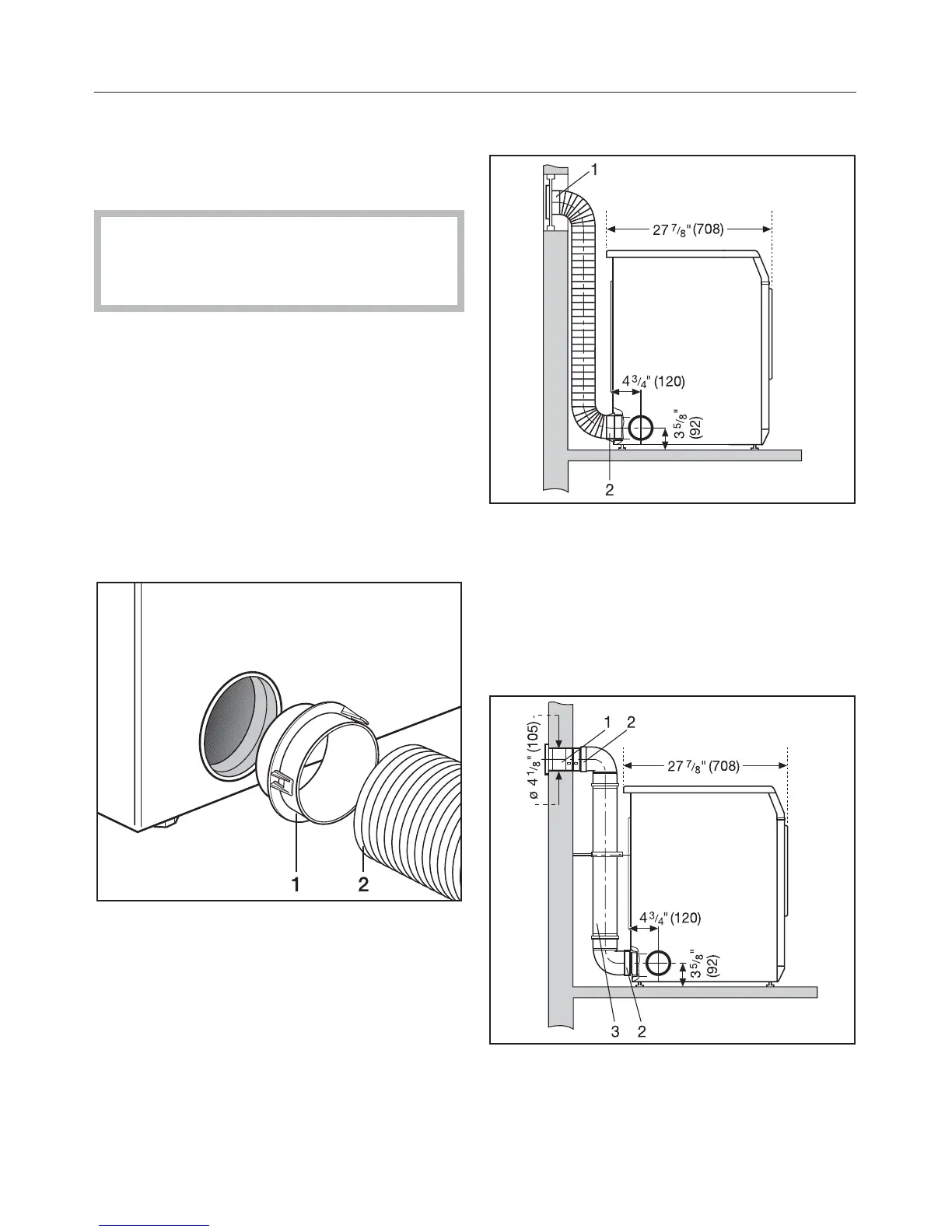

Exhaust connection with a
flexible exhaust hose or rigid
pipe
Using the connector supplied, an
exhaust hose (4" [100 mm]
diameter) can be installed.
Necessary materials:
–
the supplied connector
–
a wall or window duct (optional
accessory)
–
an exhaust hose made of approved
non-flammable material.
– rigid pipe is more suitable for long
ducts (less friction)
^
Install the connector, 1, with the
exhaust hose or pipe, 2, to the dryer.
Window connection
1 Window connection (installed in an
"plexiglass" pane)
2 Connector for the flexible exhaust
hose
Wall connection with rigid pipe
1 Wall pipe
2 Connector
3 Rigid pipe
Installation of exhaust venting
47
