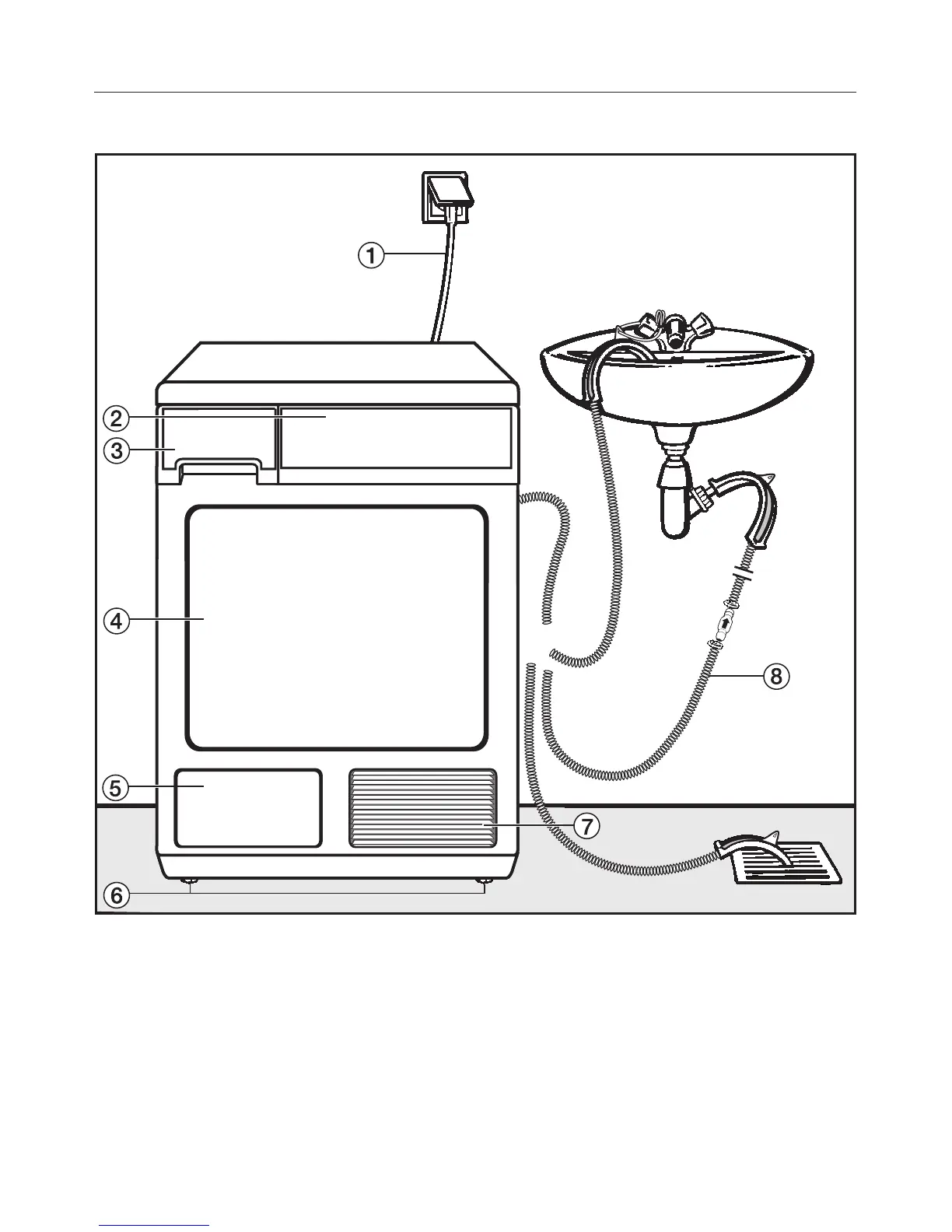

Front view
a Mains connection cable
b Control panel
c Condensed water container
d Door
e Service panel for heat exchanger
unit (for cleaning or replacing the
fine filter)
f Four height adjustable screw feet
g Cool air intake panel
h External drainage of condensed
water hose (see "External condensed
water outlet")
Installation and connection
48
