Installation and connection
74

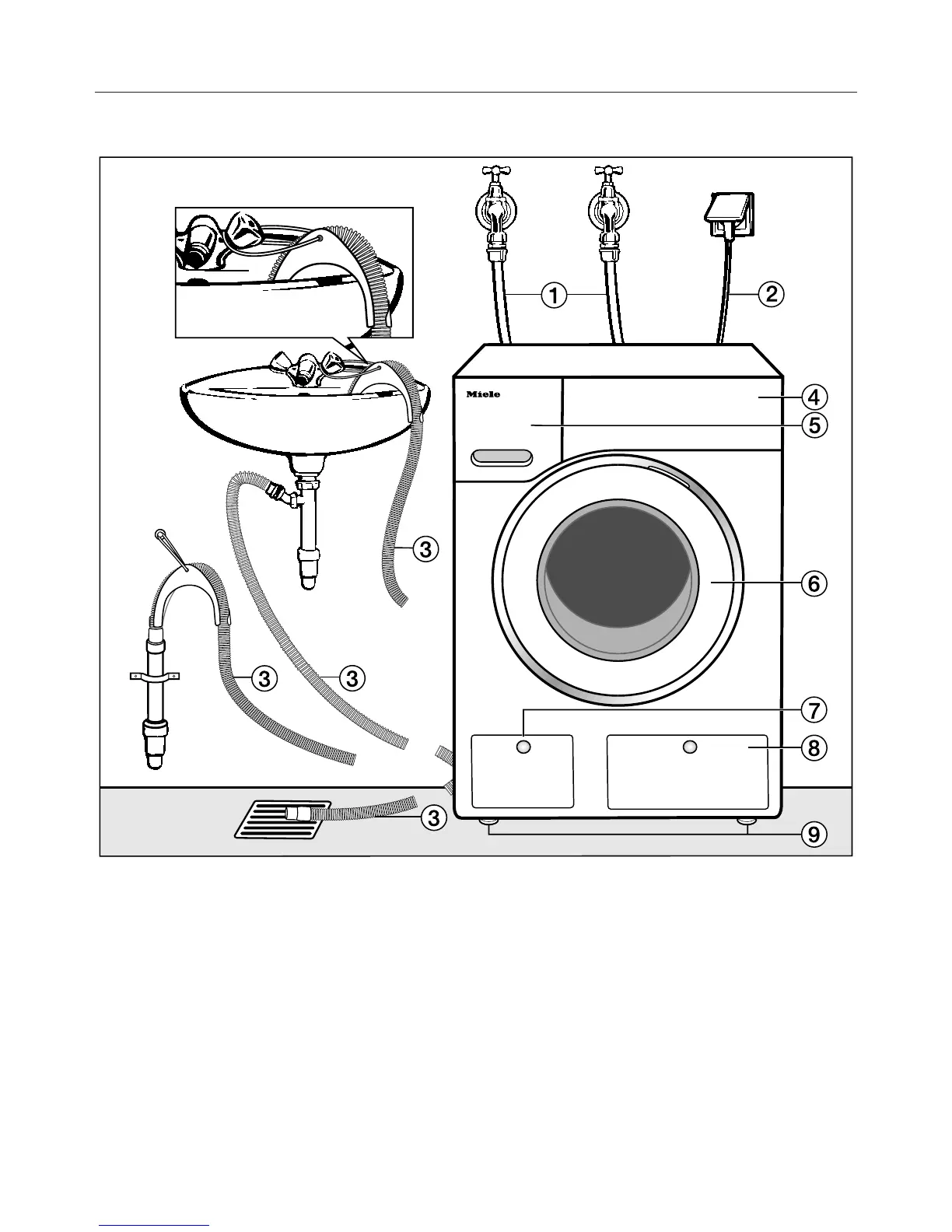

Front view
a
Inlet hoses for cold water and hot
water connection (tested to with‐
stand pressures up to7000 kPa)
b
Electrical connection
c
Flexible drain hose (with detachable
swivel elbow)
d
Control panel
e
Detergent dispenser drawer
f
Door
g
Access to drain filter, drain pump and
emergency release
h
Access panel for TwinDos containers
i
Four height adjustable feet
