Step 3
Attach a vertical closed position stop plate to the SECOND
gate.
Using appropriate hardware for your type of gate attach
the vertical closed position stop plate to the SECOND gate
frame at the point where it will come in contact with the
ground stop post.. Do not tighten it completely at this time. You must slide the closed position stop plate toward the ground
stop until they touch (Illustration C). Once you have moved the stop plate to the correct position, tighten its hardware
completely.
NOTE: For a push-to-open installation (gate opens out from the property) attach the closed position stop plate to the outside
of the gate.
Post Bracket Assembly
Gate Bracket
MASTER Gate Opener
Closed Position
Positive Stop Plates
SECOND Gate Opener
OPTIONAL Closed Position
Ground Stop Post
Step 2
Installalowprolegroundstop(not provided) beneath the
SECOND gate stop plate.
The ground stop needs to be positioned near the end of the
gate as shown in Illustration A and may be made of metal
orconcreteandshouldbermlysecuredintheground(we
recommend setting it in concrete).
Closed Position Stop Plate mounted
on the gate leaf that CLOSES FIRST
Closed Position Stop Plate

Low Profile Ground Stop
in Near the Center of Driveway
FRONT VIEW
SIDE VIEW
Mount Vertically

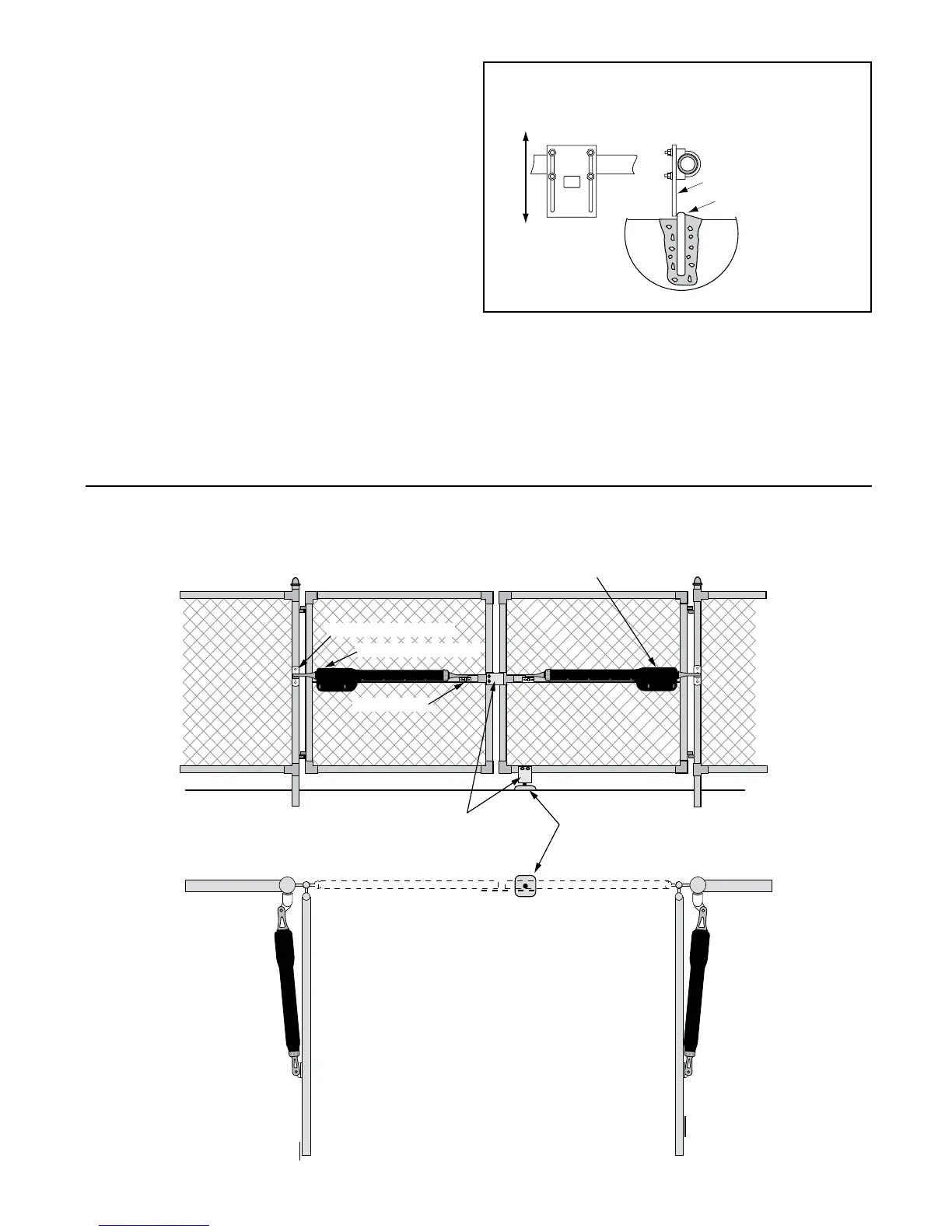

Illustration C
At this stage of the installation, the openers should be installed on the
gate leaves and the open and closed position stops should be in place.
