Operators Manual
19

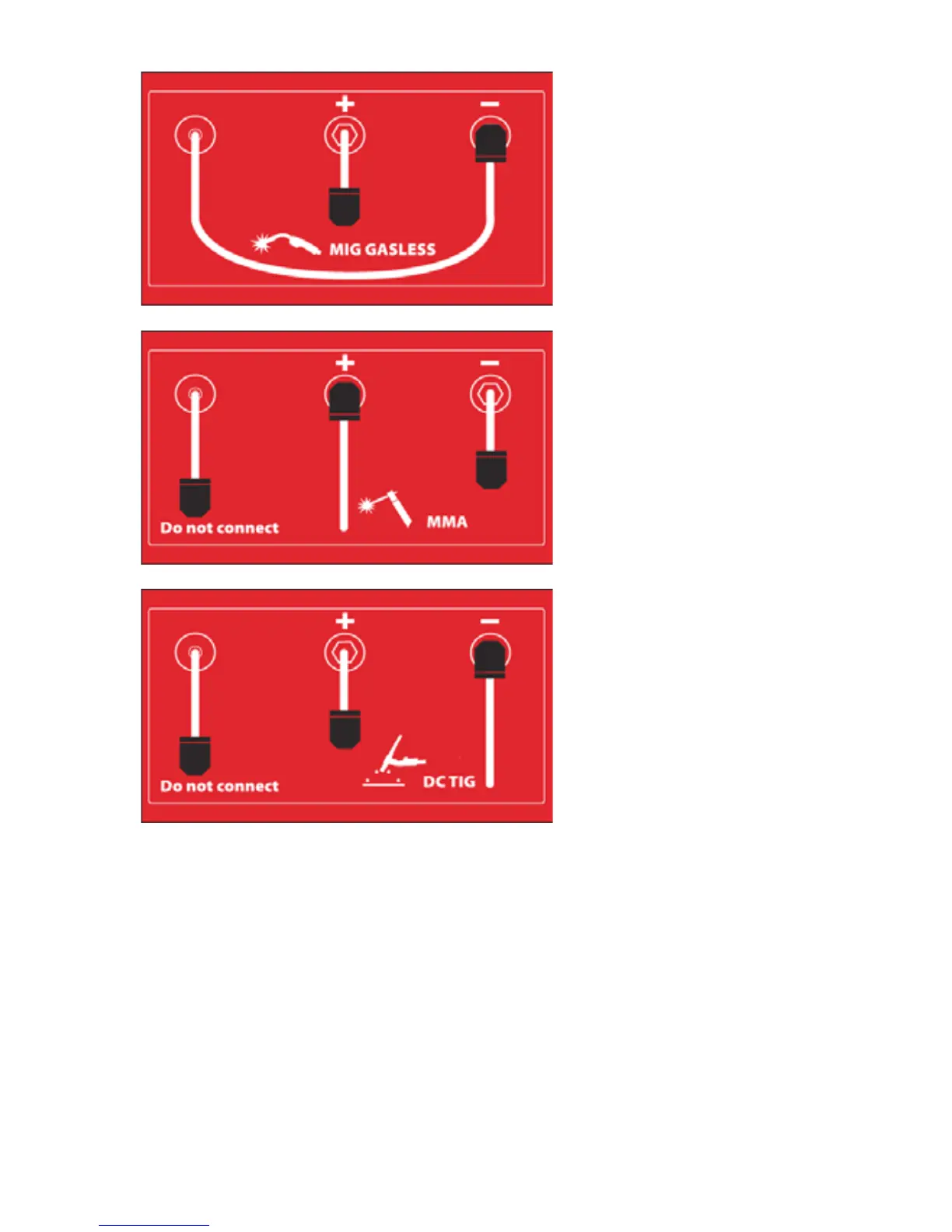

2. Gasless MIG
3.MMA
4. DC TIG
6.2 The gas hose, regulator and gas cylinder connecon
Aach one end of the gas hose to the quick release ng (gas inlet) located on the back
panel of the welder. Aach the other end to the gas regulator which is aached to the
shielding gas cylinder.
1. Cylinder valve: Controls GAS CYLINDER gas ow
2. Cylinder pressure gauge
3. Gas ow gauge
4. Regulator
5. Adjustment knob controls gas pressure to the welder
6. Gas hose
7. Gas cylinder
