Migomag SIM 200 LCD - Know Your Welder

Operators Manual
9

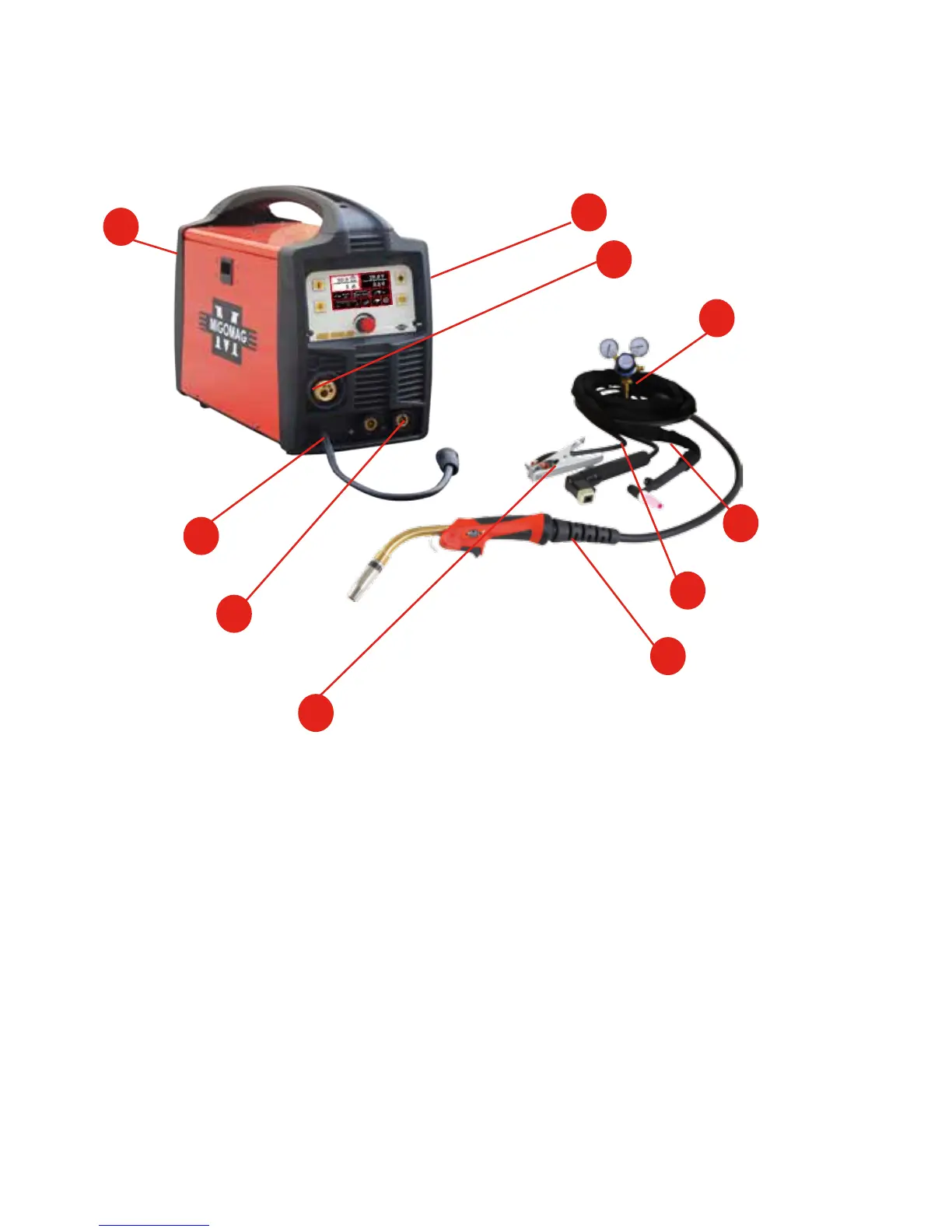

Know your Welder
Factory standard: EN60974-1
1. PRIMARY INPUT CABLE
2. ON/OFF - In the “OFF” posion no power is being supplied. In the “ON” posion
power is supplied to the main transformer and control circuit
3. REGULATOR FLOW METER
4. GAS HOSE - Used to connect the welding machine to the regulator
5. TIG TORCH - For DC Tig welding with Argon gas
6. MIG TORCH - MMPRO 24 3MT The welding wire is driven through the welding torch
to the work piece
7. EARTH CABLE WITH CLAMP - Use earth clamp to connect to work piece
8. POLARITY CHANGE CABLE - To change the polarity of machine from DC - to DC +
9. EARTH LEAD CONNECTION DC
10. EURO MIG TORCH CONNECTION
11. OPERATION PANEL
12. GAS HOSE CONNECTION
