Migomag SIM 200 LCD - Drive Bracket Assembly Part Diagram

Operators Manual
35

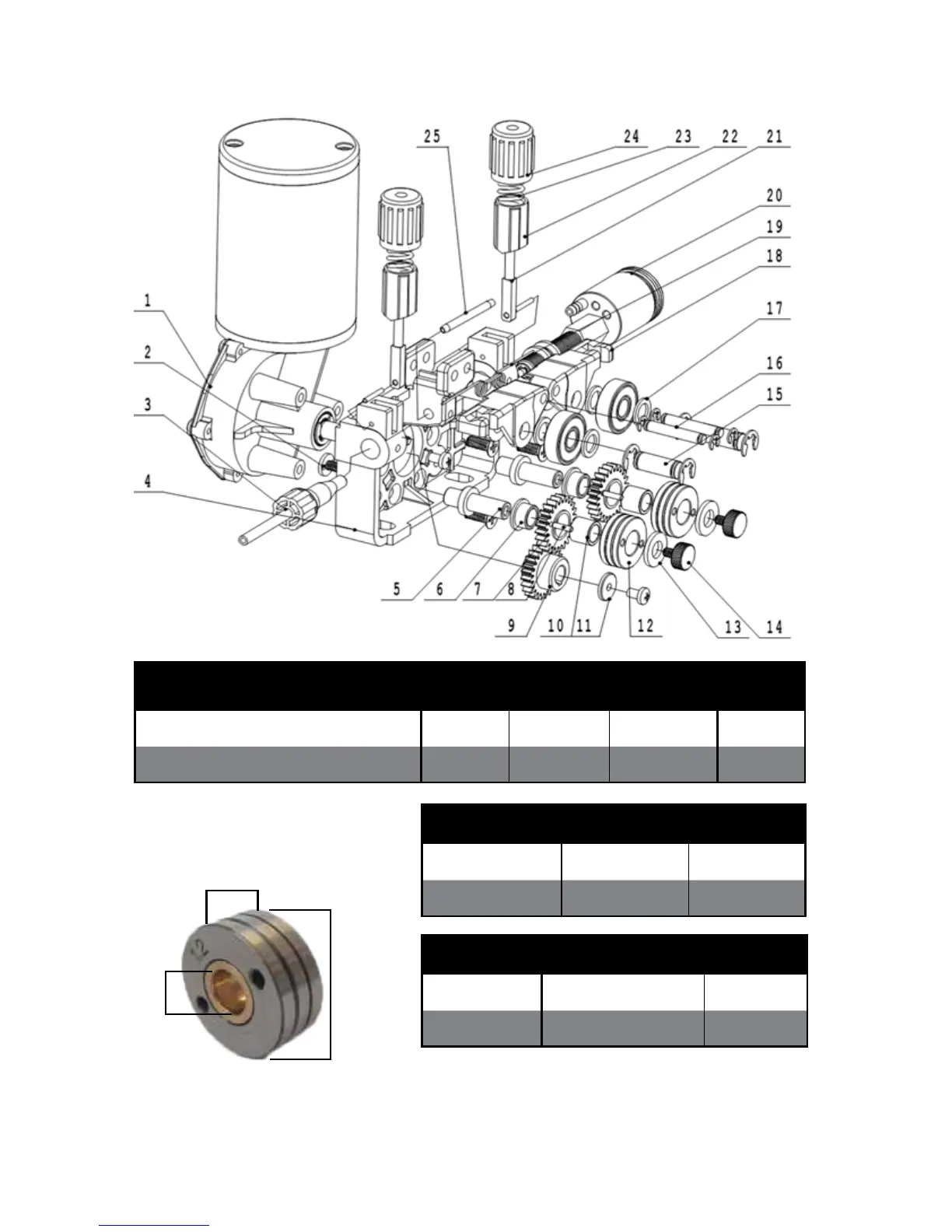

Drive Bracket Assembly Part Diagram
Migomag Machine
Number
Solid Wire V-Grooved
Sim 200-Sim 250- Sim 350 and Sim PF4 0.6-0.8mm 0.9-1.0mm 1.0-1.2mm 1.2-1.6mm
Part Number 87003100 87003101 87003102 87003103
Aluminium U-Grooved
0.9-1.0mm 1.0-1.2mm 1.2-1.6mm
87003107 87003108 87003109
11 mm
10 mm
30 mm
Gasless Wire Flux Cored
0.6-0.8mm 0.9-1.0mm 1.2-1.6mm
87003104 87003105 87003106
* See Page 33
