Milesight UF51 - Power Supply

9
3. Power Supply
UF51 can be powered by 802.3af standard PoE or 9-48VDC. Both power supplies can’t be used at the
same time.

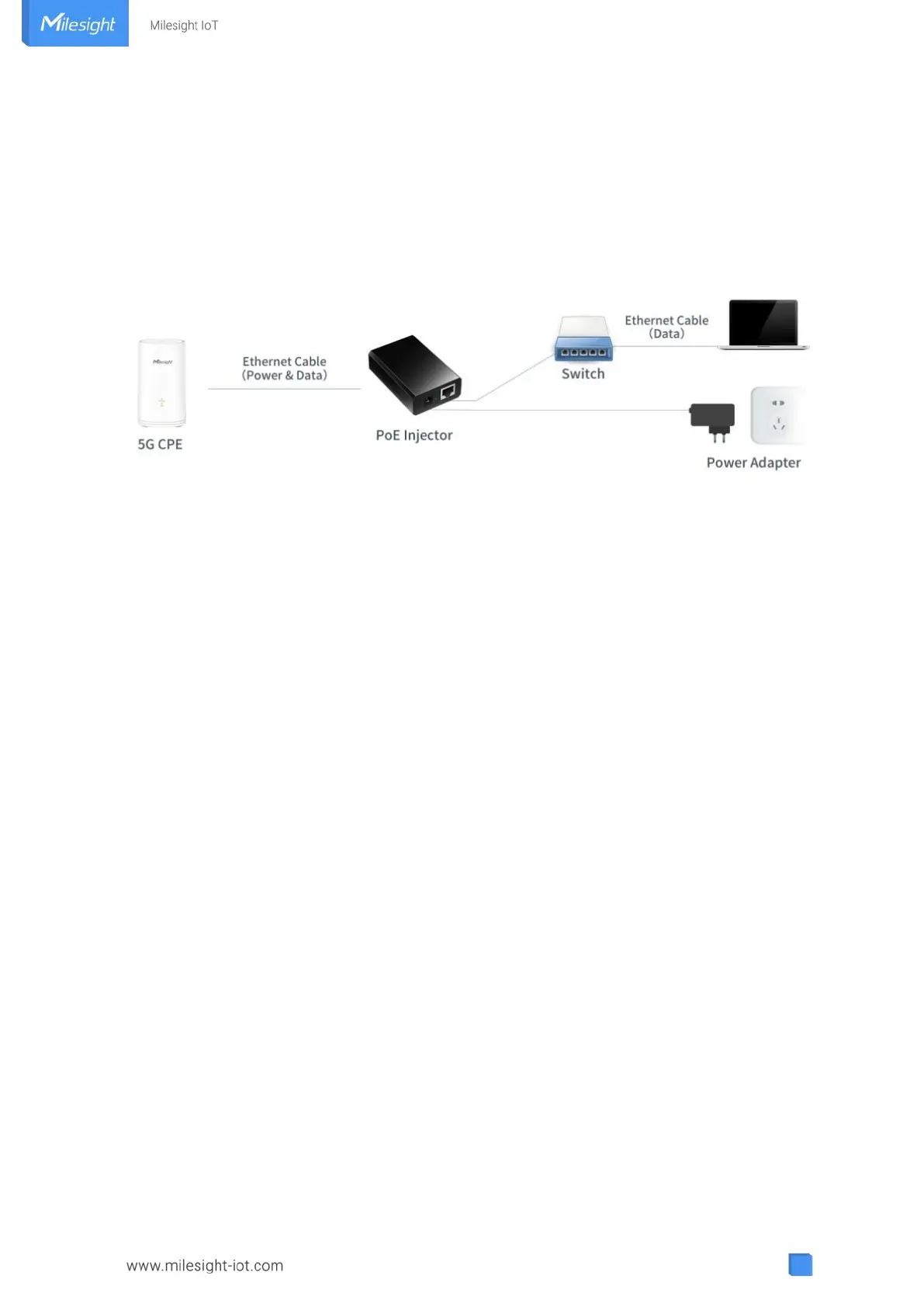

PoE Supply: Follow the below picture to provide power supply via PoE injector. Besides, UF51 can also be
powered by PoE switch.
DC Supply: Connect the DC power cable to terminal block, then connect the terminal block to DC
interface to power the device.
