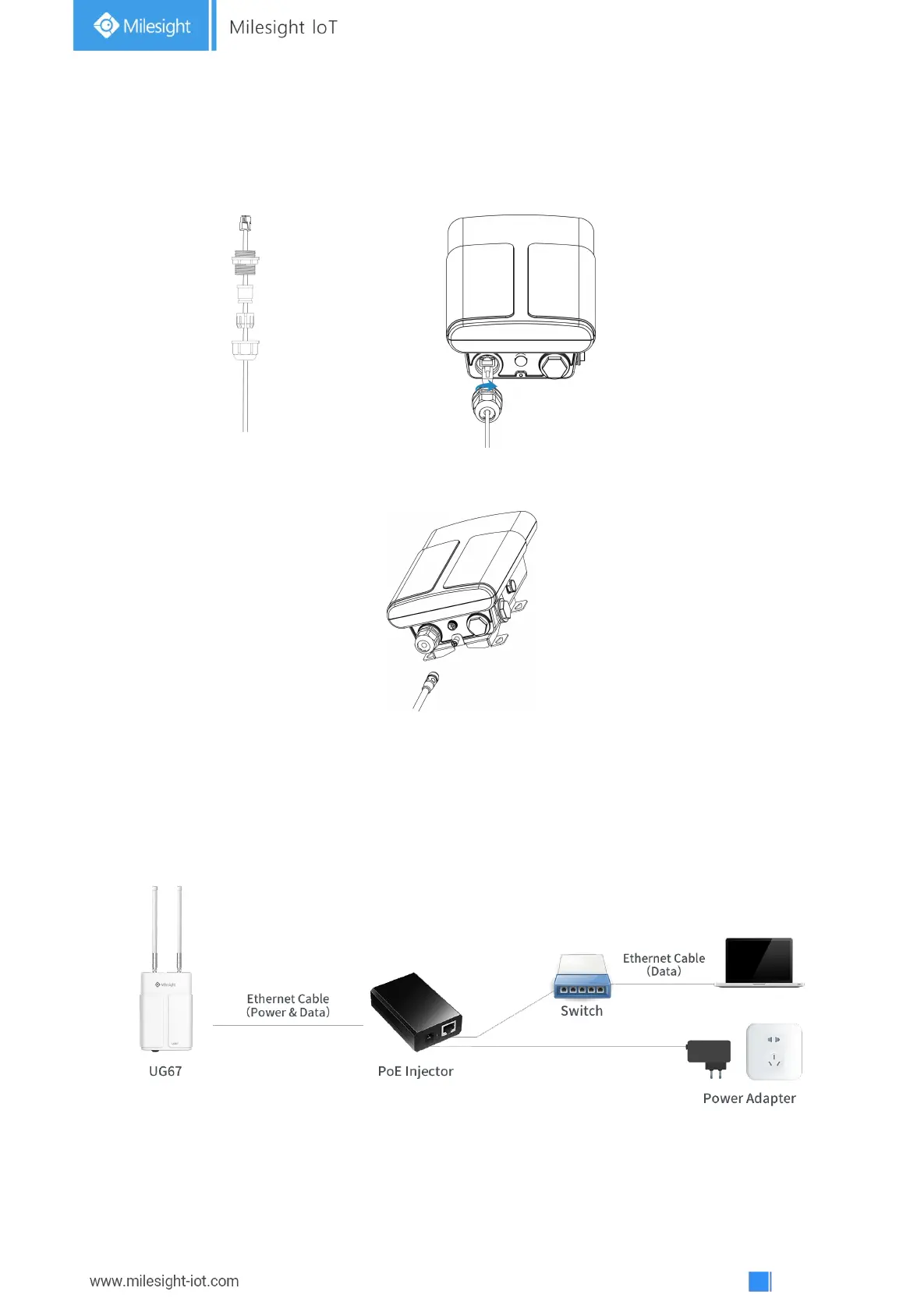

3.3 Ethernet Cable & Power Cable Installation
Pass the Ethernet cable through the cable gland and rotate the cable gland to gateway, then tighten the
cable gland with wrench.
For DC or solar power supply, remove the protective cap of power connector and rotate the DC power
cable into the power connector.
3.4 Power Supply
UG67 can be powered by 802.3af standard PoE injector or other PoE devices. Please follow the picture
to provide power supply via PoE injector:
Note: When being connected, one end of the Ethernet cable to UG6x should be installed first, otherwise,
PoE devices or gateway may be damaged.
