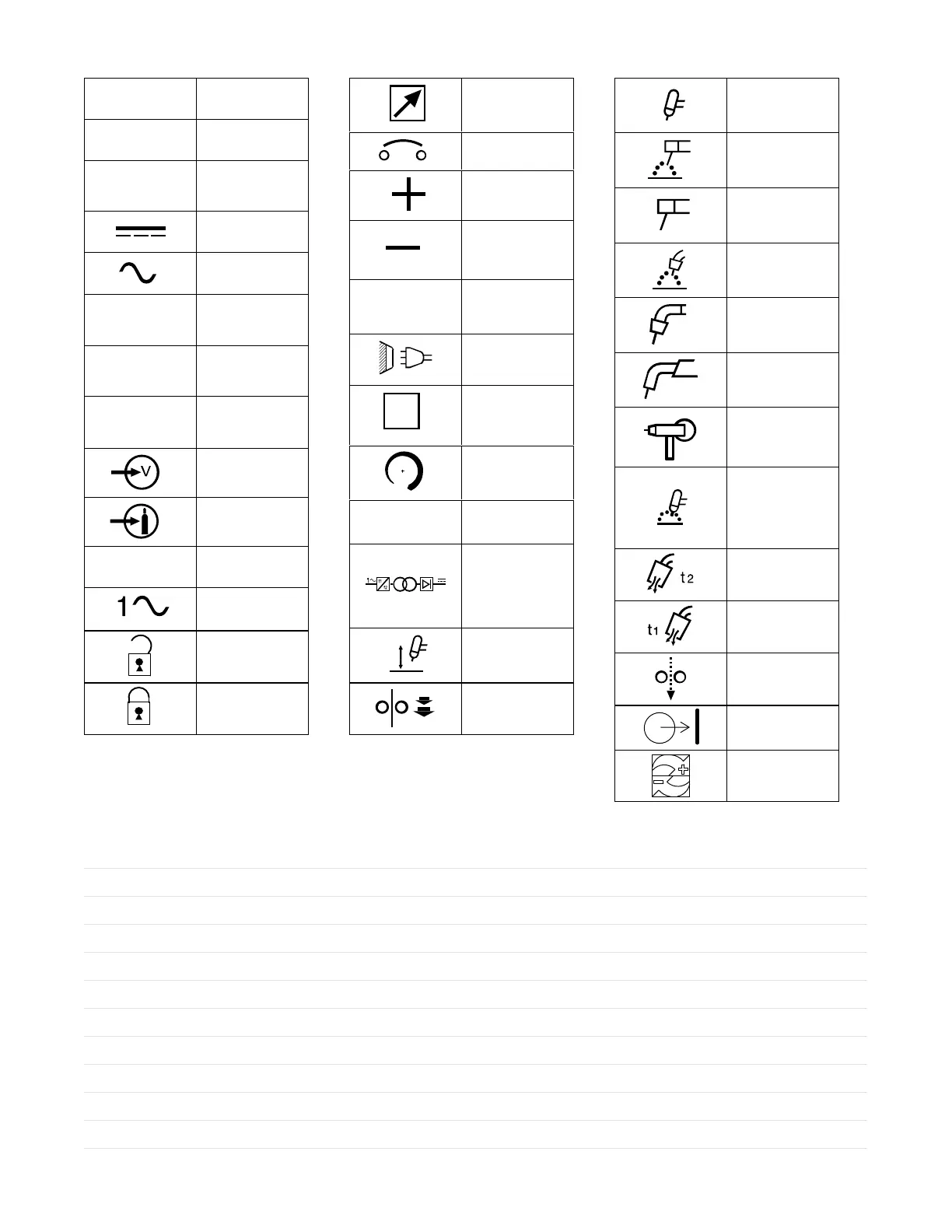

3-2. Miscellaneous Symbols And Definitions
A
Amperage
V
Voltage
U
0
Rated No Load
Voltage (OCV)
Direct Current
(DC)
Alternating
Current (AC)
U
1
Primary Voltage
U
2
Conventional
Load Voltage
I
2
Rated Welding
Current
Input Power Or In-
put Voltage
Gas Input
IP
Internal Protection
Rating
Single Phase
Unlocked
Locked
Remote
Circuit Breaker
Positive
Negative
X
Duty Cycle
Line Connection
S
Suitable for Some
Hazardous
Locations
Increase
Hz
Hertz
Single Phase
Static Frequency
Converter-
Transformer-
Rectifier
Lift Arc (GTAW)
TIG / Remote
Wire Feed Slow
Run-In
Gas Tungsten Arc
Welding (GTAW)
Torch
Shielded Metal
Arc Welding
(SMAW)
Shielded Metal
Arc (SMAW)
Electrode Holder
Gas Metal Arc
Welding (GMAW)
Gas Metal Arc
Welding (GMAW)
MIG / Gun Control
Self-Shielded Flux
Cored Arc
Welding (FCAW)
Wire Feed Spool
Gun
Gas Tungsten Arc
Welding (GTAW) /
Tungsten Inert
Gas (TIG)
Welding
Gas Postflow
Gas Preflow
Cold Jog (Inch)
Toward Workpiece
Output Enabled
Reverse Polarity
Notes

Miller Multimatic 235 Specifications

General

Input Voltage	120/240 V
Input Hz	50 / 60 Hz
Max Output	235 A
Welding Processes	MIG, Stick, TIG, Flux-Cored
Wire Feed Speed Range	50-700 IPM
Wire Size Range (Flux-Cored)	0.030-0.045 in (0.8-1.2 mm)
Input Phase	Single Phase
Wire Size Range (MIG)	0.024 - 0.035 in
