Miller Multimatic 235 User Manual

. A complete Parts List is available at www.MillerWelds.com
OM-283935 Page 24

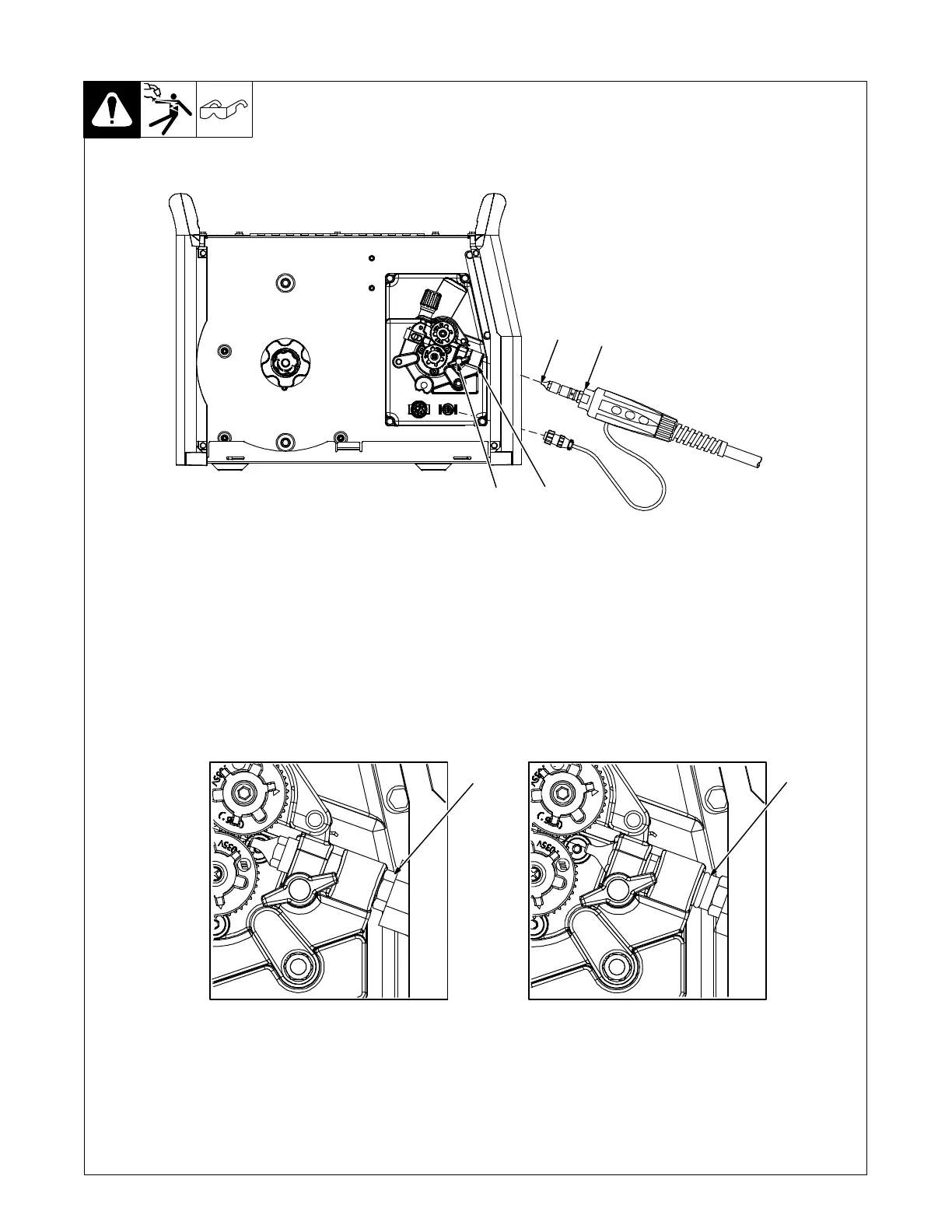

5-10. MIG Gun Connection Inside Unit
1 Gun Securing Knob
2 Gun Block
3 Gun Outlet Wire Guide
4 Gun End
Loosen knob. Insert end of gun through
opening in front panel until gun end
bottoms against gun block. Tighten
knob.
Correct Incorrect
. Be sure that gun end is tight against drive assembly.
4
4
282950A
3
2
1
4

Miller Multimatic 235 Specifications

General

Input Voltage	120/240 V
Input Hz	50 / 60 Hz
Max Output	235 A
Welding Processes	MIG, Stick, TIG, Flux-Cored
Wire Feed Speed Range	50-700 IPM
Wire Size Range (Flux-Cored)	0.030-0.045 in (0.8-1.2 mm)
Input Phase	Single Phase
Wire Size Range (MIG)	0.024 - 0.035 in
