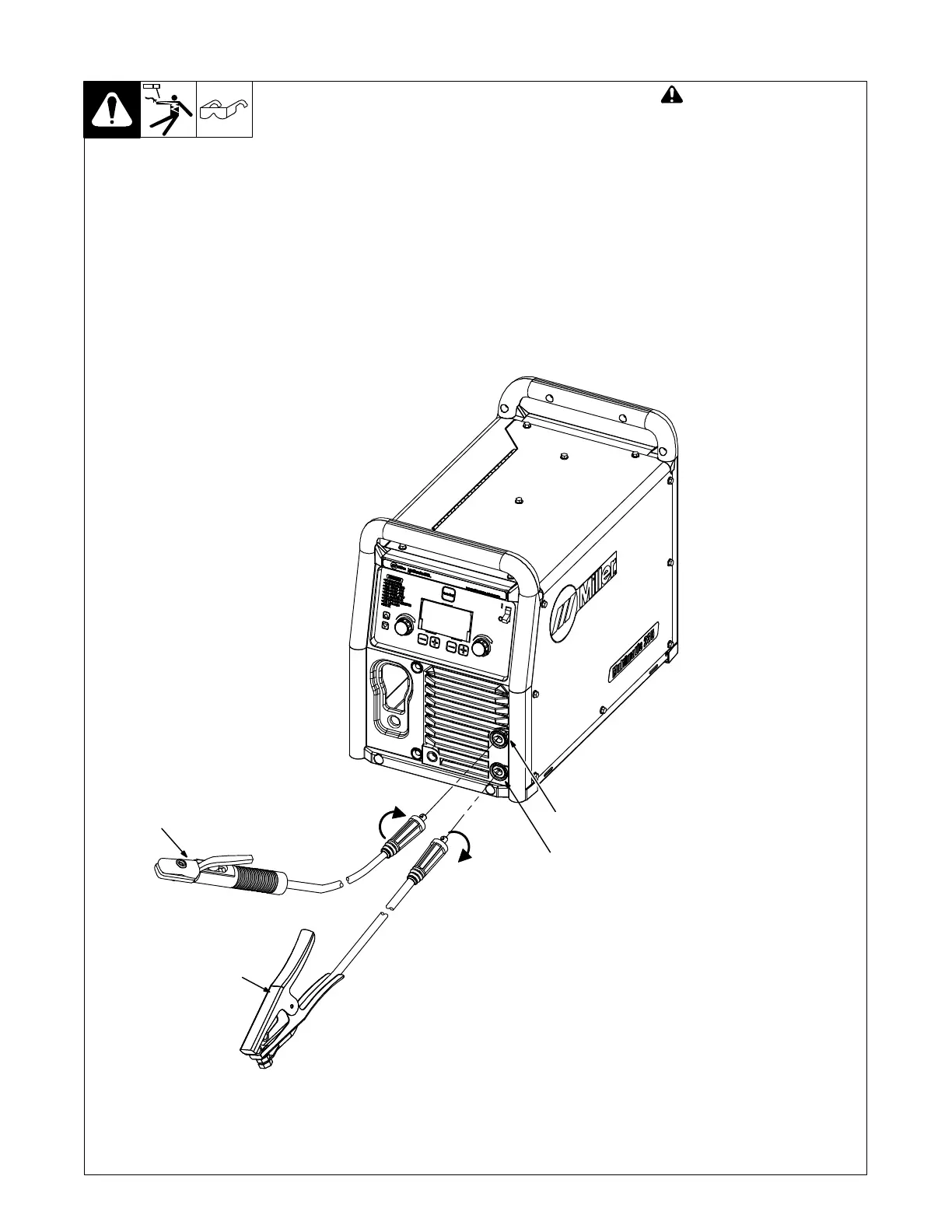

5-11. Stick Welding Connections
286834-A
! Turn off unit and disconnect
input power before making
connections.
1 Positive Weld Output
Receptacle
2 Negative Weld Output
Receptacle
3 Stick Electrode Holder And
Cable
4 Work Clamp And Cable
Connect stick electrode holder
cable to the positive weld output
receptacle, and connect work
clamp to negative weld output
receptacle.
Ensure all connections are tight.
4
1
2
3
