5-14. Installing Wire Spool And Adjusting Hub Tension
Hand tighten knob clockwise.
When a slight force is needed
to turn spool, tension is set.
282945A

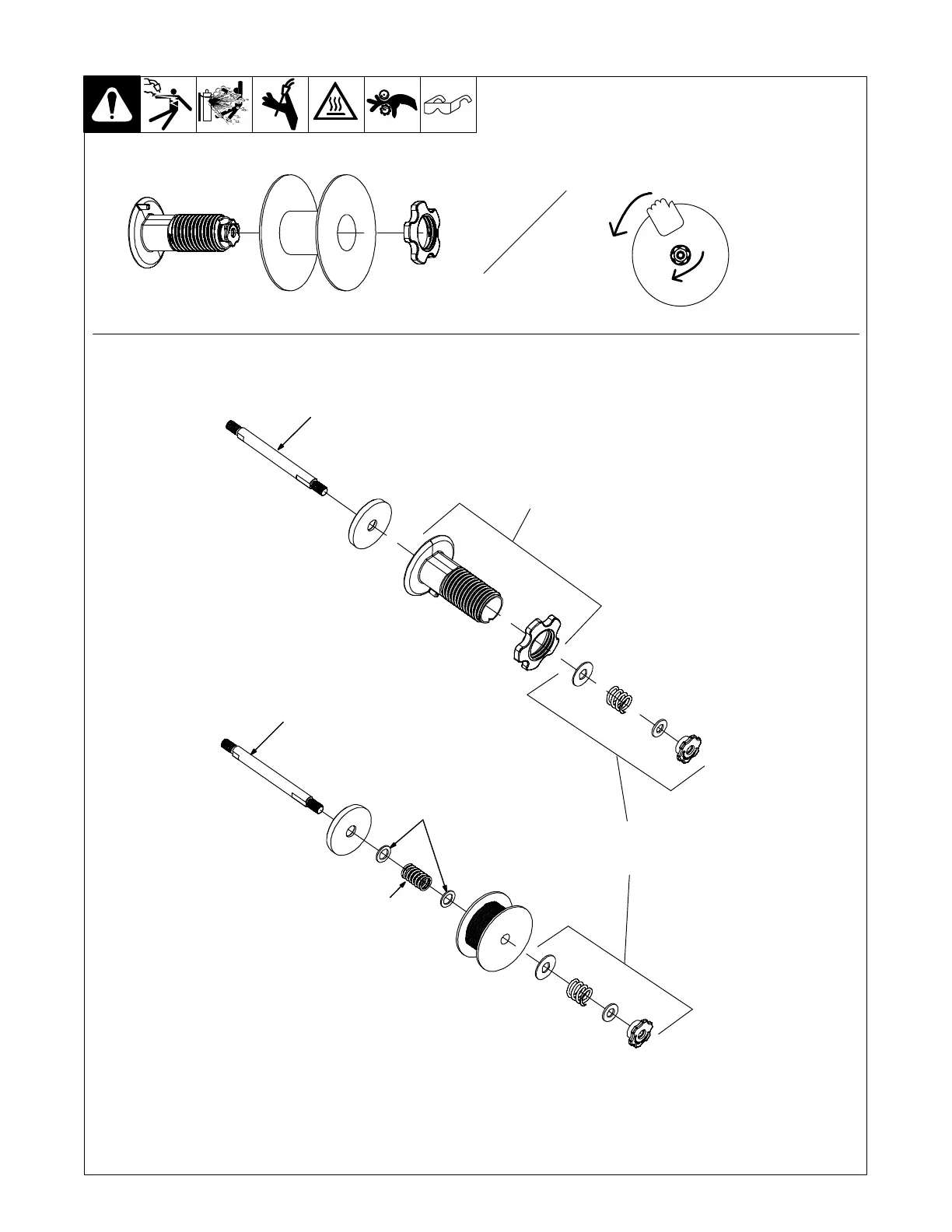

Installing 1 Or 2 lb Wire Spool
To install either a 1 lb or 2 lb wire
spool, follow the procedure as
shown in the illustration.
Remove these
components
from spindle.
Spindle
Spindle
Install these
components
onto spindle.
Order additional spring
Part No. 186437
Order two additional 5/8 washers
Part No. 605941
