Miller Multimatic 235 User Manual

. A complete Parts List is available at www.MillerWelds.com
OM-283935 Page 30

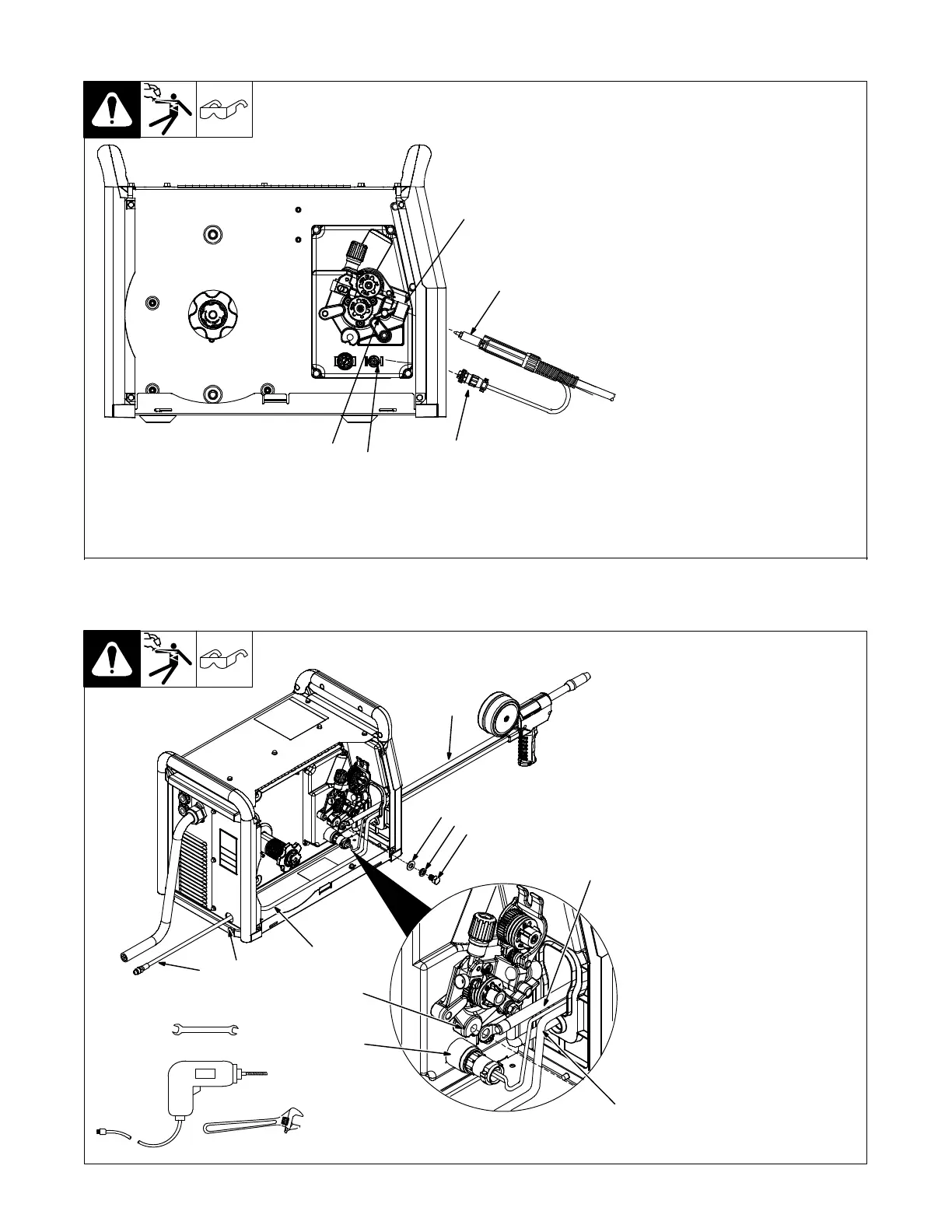

5-16. Connecting Spoolmate 100/150 Gun
282298
1 Gun Trigger Plug
Insert plug into receptacle, and tighten
threaded collar.
2 Gun Trigger Receptacle
3 Gun End
4 Drive Assembly
5 Gun Securing Knob
Loosen gun securing knob . Insert
Spoolmate gun end through opening
until it is tight against drive assembly.
Tighten gun securing knob.
1
4
2
5
3
5-17. Connecting Spoolmatic) 15A Or 30A Or Spoolmate 200 Gun
282298
1 Gun Trigger Plug
Insert plug into receptacle, and tighten
threaded collar.
2 Weld Cable
3 Shielding Gas Hose
Route weld cable and gas hose
through opening in panel.
4 Drive Casting
Remove the 3/4 in. bolt from the drive
casting. Use bolt to connect spoolgun
weld cable to drive casting.
5 1/2-13 x 3/4 in. Bolt (282942)
6 Lock Washer (602216)
7 Washer (602247)
8 Gas Hose Routing Hole
To route gas hose through rear panel,
drill 1 in. hole through bottom of rear
plastic bezel. Align drill with pilot dim-
ple in plastic bezel visible from inside
wire drive compartment.
9 Gas Hose Fitting
Route shielding gas hose through wire
drive compartment, out opening in rear
panel, and up to regulator/flowmeter.
Connect gas hose fitting to
regulator/flowmeter .
Tools Needed:
3/4 in.
1
4
2
5
9
3
2
3
1 in.
6
7
8

Miller Multimatic 235 Specifications

General

Input Voltage	120/240 V
Input Hz	50 / 60 Hz
Max Output	235 A
Welding Processes	MIG, Stick, TIG, Flux-Cored
Wire Feed Speed Range	50-700 IPM
Wire Size Range (Flux-Cored)	0.030-0.045 in (0.8-1.2 mm)
Input Phase	Single Phase
Wire Size Range (MIG)	0.024 - 0.035 in
