Miller Multimatic 235 User Manual

. A complete Parts List is available at www.MillerWelds.com
OM-283935 Page 38

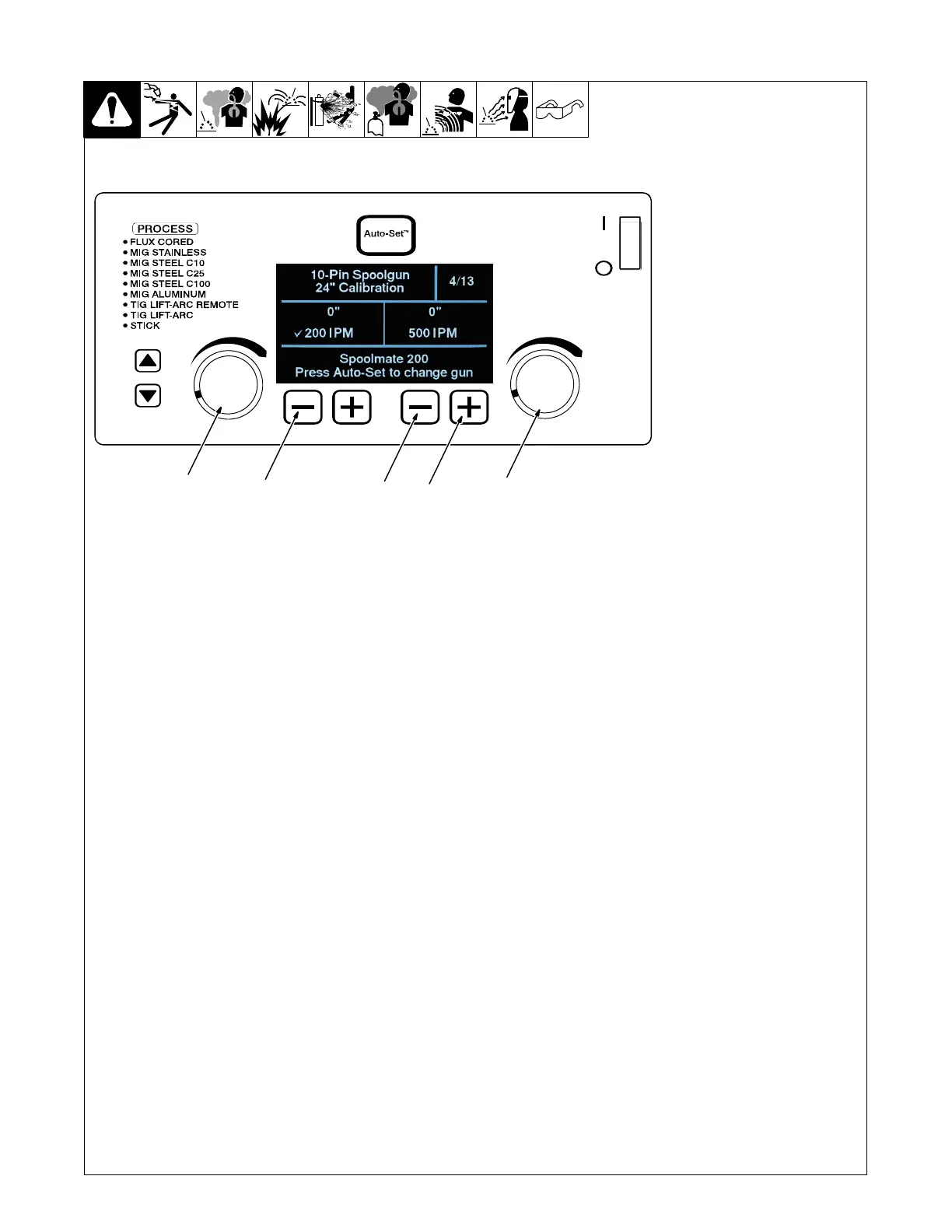

6-7. 10 Pin Spoolgun 24 Inch Calibration (Menu 4 Of 13)
1 Lower Left Outside (−) Button
2 Lower Right Outside (+)
Button
3 Lower Right Inside (−) Button
4 Left Control Encoder
5 Right Control Encoder
. Spoolmate 200 and Spoolmat-
ic 15A/30A drive motors are
unique to this welding power
source. Motor calibration is
necessary any time a different
Spoolmate 200 or Spoolmatic
15A/30A is connected to the
Multimatic 235.Press Auto-Set
button to select Spoolmate 200
or Spoolmatic 15A/30A.
Connect Spoolmate to unit.
Cut wire flush at nozzle.
Follow instructions in Section 6-3 to
enter the setup menu.
To perform a Spoolgun calibration
24 in. run-out test at 200 IPM, turn
left Adjustment knob, and verify that
a check mark appears next to 200
IPM.
Cut wire flush at nozzle and then
trigger the Spoolgun.
Spoolmate will feed approximately
24 in. of wire through gun.
Cut wire flush at nozzle and mea-
sure run−out.
If wire length is not 24 in., use left
Adjustment knob to increase/de-
crease length of the run-out.
To perform a Spoolgun calibration
24 in. run-out test at 500 IPM, turn
right Adjustment knob and verify
that a check mark appears next to
500 IPM.
Cut wire flush at nozzle and then
trigger the Spoolgun.
Spoolgun will feed approximately
24 in. of wire through gun.
Cut wire flush at nozzle and mea-
sure run−out.
If wire length is not 24 in., use right
Adjustment knob to increase/de-
crease length of the run−out.
To exit menu, simultaneously press
and release the lower left outside
(−) button and lower right outside
(+) button, or turn unit off and on.
Ref. 281104-C
1
2
3
4
5

Miller Multimatic 235 Specifications

General

Input Voltage	120/240 V
Input Hz	50 / 60 Hz
Max Output	235 A
Welding Processes	MIG, Stick, TIG, Flux-Cored
Wire Feed Speed Range	50-700 IPM
Wire Size Range (Flux-Cored)	0.030-0.045 in (0.8-1.2 mm)
Input Phase	Single Phase
Wire Size Range (MIG)	0.024 - 0.035 in
