OM-255503 Page 12

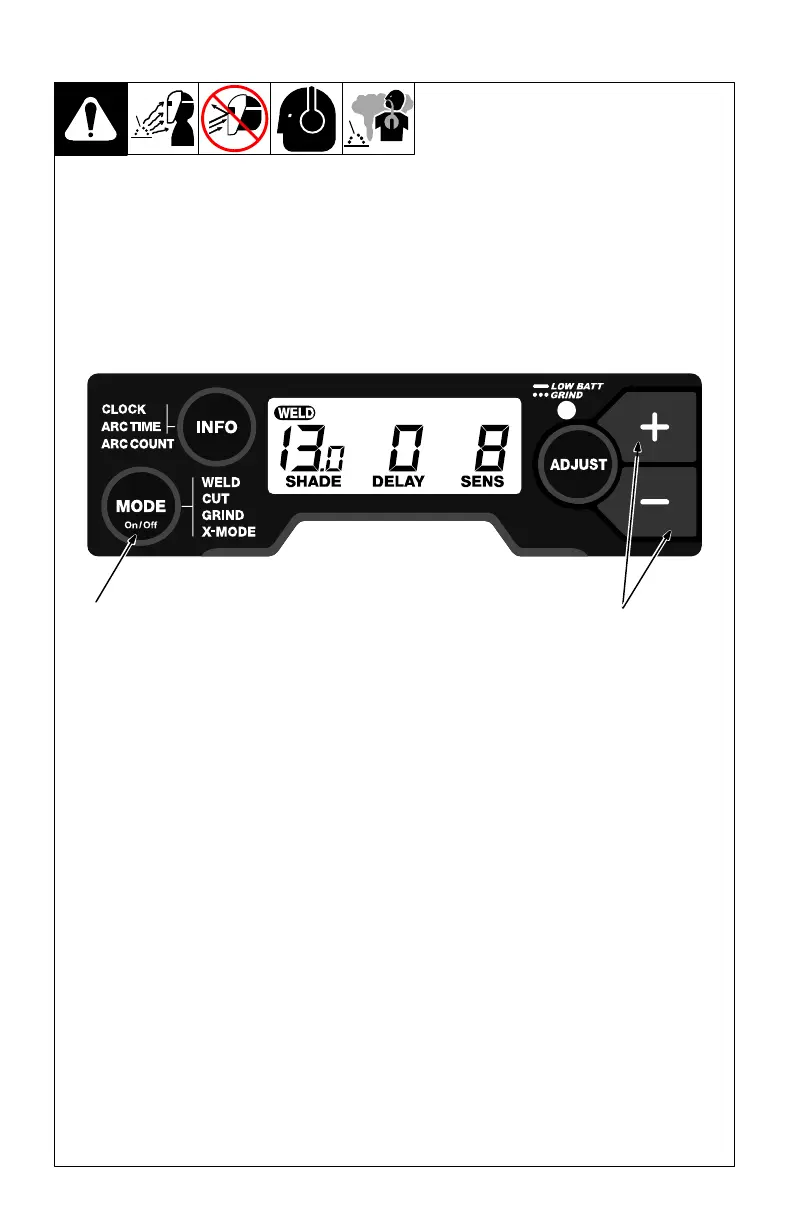

1 Mode Button
2 Increase (+) And
Decrease (-) Buttons
Use the + and − adjustment
buttons to adjust the lens
shade in the darkened state.
Use the table in Section 1-4
to select proper shade con-
trol setting based on your
welding process. The shade
ranges for each mode are as
follows:
Weld − No. 8 − No. 13
Cut − No. 5 − No. 8
Grind − No. 3 only
X-Mode − No. 8 − No. 13
Start at the highest setting
and adjust lighter to suit the
application and your person-
al preference.
Variable Shade Adjust-
ment Procedure
Press Mode (On/Off)
button to turn lens On.
Helmet control display
will appear.
Press Mode Button to
select desired function:
Weld, Cut, or X-Mode.
Use + and − adjustment
buttons to select desired
shade.
Begin welding or contin-
ue with other lens ad-
justments.
21
260482-4
4-5. Variable Shade Control
