OM-254 449 Page 29
1 249 970 Torch Handle Kit (1)
2 249 971 Torch Trigger (1)
3 249 959 Leads, 12 ft (1)
3 249 960 Leads, 20 ft (1)
4 252 938 Torch Body Kit (1)
5 249 972 Torch Trigger Assembly
w/Spring (1)
252 951 Grease, Silicone (1)
249 951 Torch, Replacement 12 ft (1)
249 952 Torch, Replacement 20 ft (1)
1
1
2
3
4
5
Item
No.
Part
No. Description
See Figure 7-7 for
additional consumable parts.

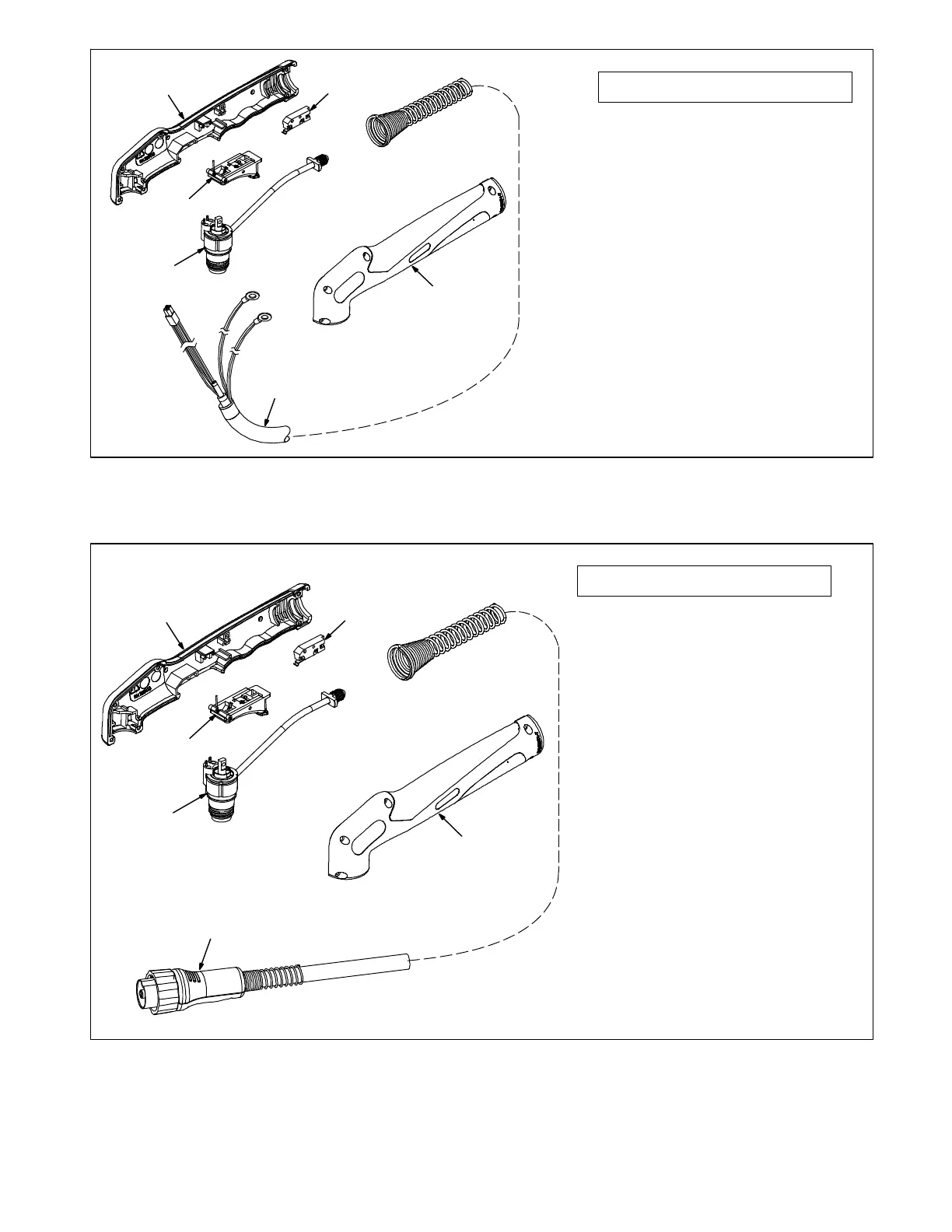

Figure 7-5. Torch, XT40
1 249 970 Torch Handle Kit (1)
2 249 971 Torch Trigger
Microswitch (1)...............
3 260 637 Leads, XT40 12ft Hand Held
Torch w/Disconnect (1)
3 260 638 Leads, XT40 20ft Hand Held
Torch w/Disconnect (1)
4 252 938 Torch Body Kit (1)
5 249 972 Torch Trigger Assembly
w/Spring (1)
252 951 Grease, Silicone (1)
260 633 XT40, 12ft Hand Held Torch
w/Disconnect Replacement (1)
260 635 XT40, 20ft Hand Held Torch
w/Disconnect Replacement (1)
See 7-7 for
additional consumable parts.
1
1
2
3
4
5
Item
No.
Part
No. Description
Figure 7-6. Torch, XT40 Quick Connect
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model is required when ordering parts from your local distributor.
