OM-254 449 Page 30
254 655-B
.
For extended tip use, set Amperage control to 40.
Figure

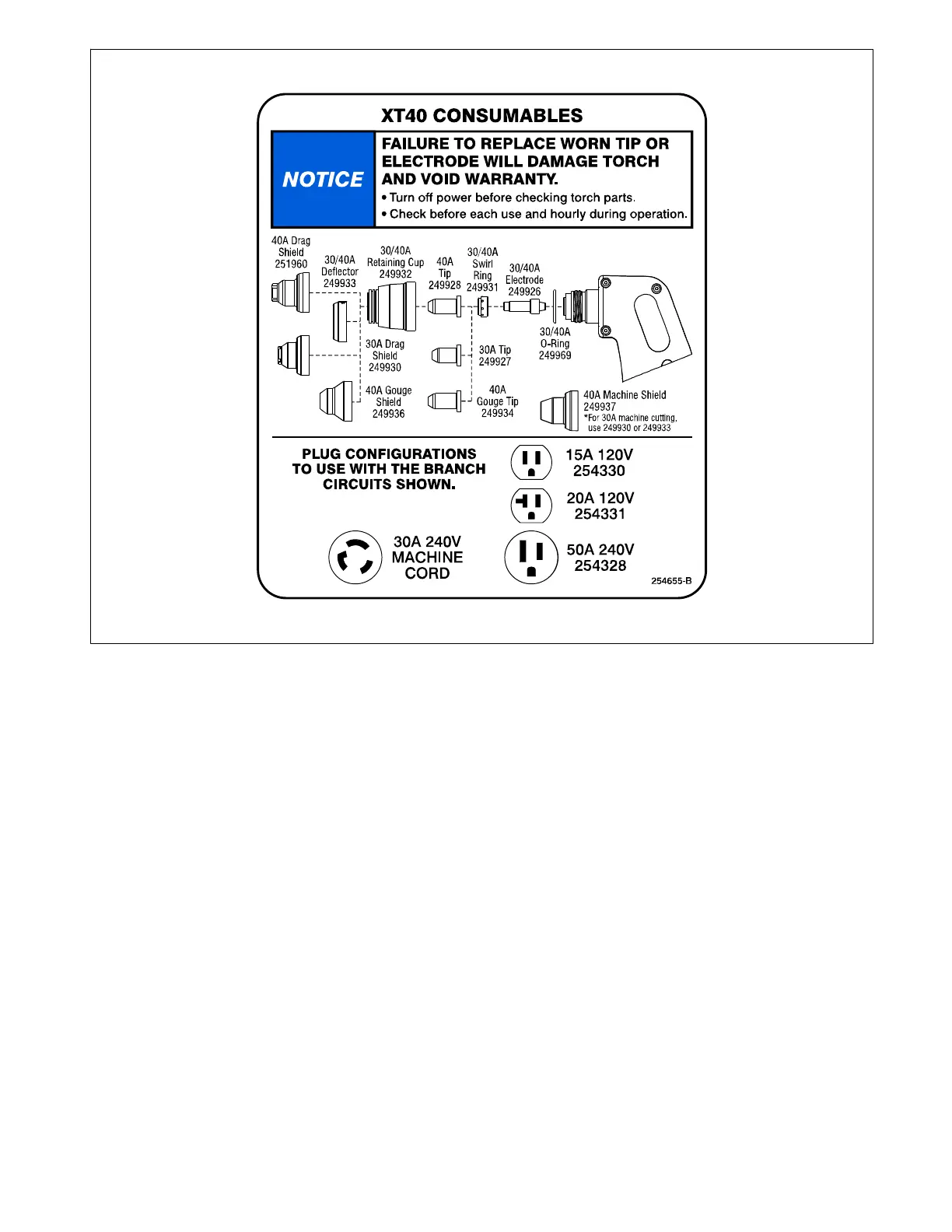

7-7. Consumable Parts For XT40
T
o
maintain the factory original performance of your equipment, use only Manufacturer
’s Suggested
Replacement Parts. Model is required when ordering parts from your local distributor
.
33
