OM-254 449 Page 34
1 259 357 Long Body Positioning Sleeve (1)
2 263 389 Short Body Positioning Sleeve (1)
3 249 963 Torch Lead, Replacement W/QD 25 ft (1)
3 249 964 Torch Lead, Replacement W/QD 50 ft (1)
4 259 361 Torch Sleeve (1)
5 256 040 Main Body W/Switch (1)
6 259 334 Cup Detect Switch
7 243 754 Kit, XT60M QD w/Wing Head Fastener
249 955 Torch, Machine Long Body Replacement 25 ft (1)
249 956 Torch, Machine Long Body Replacement 50 ft (1)
257 464 Torch, Machine Short Body Replacement 25 ft (1)
263 952 Torch, Machine Short Body Replacement 50 ft (1)
Part
No.
Item
No. Description
5
See 7-11 for
additional consumable parts.
4
3
1
804 036-A / Ref. 265 001-A
7
2
6

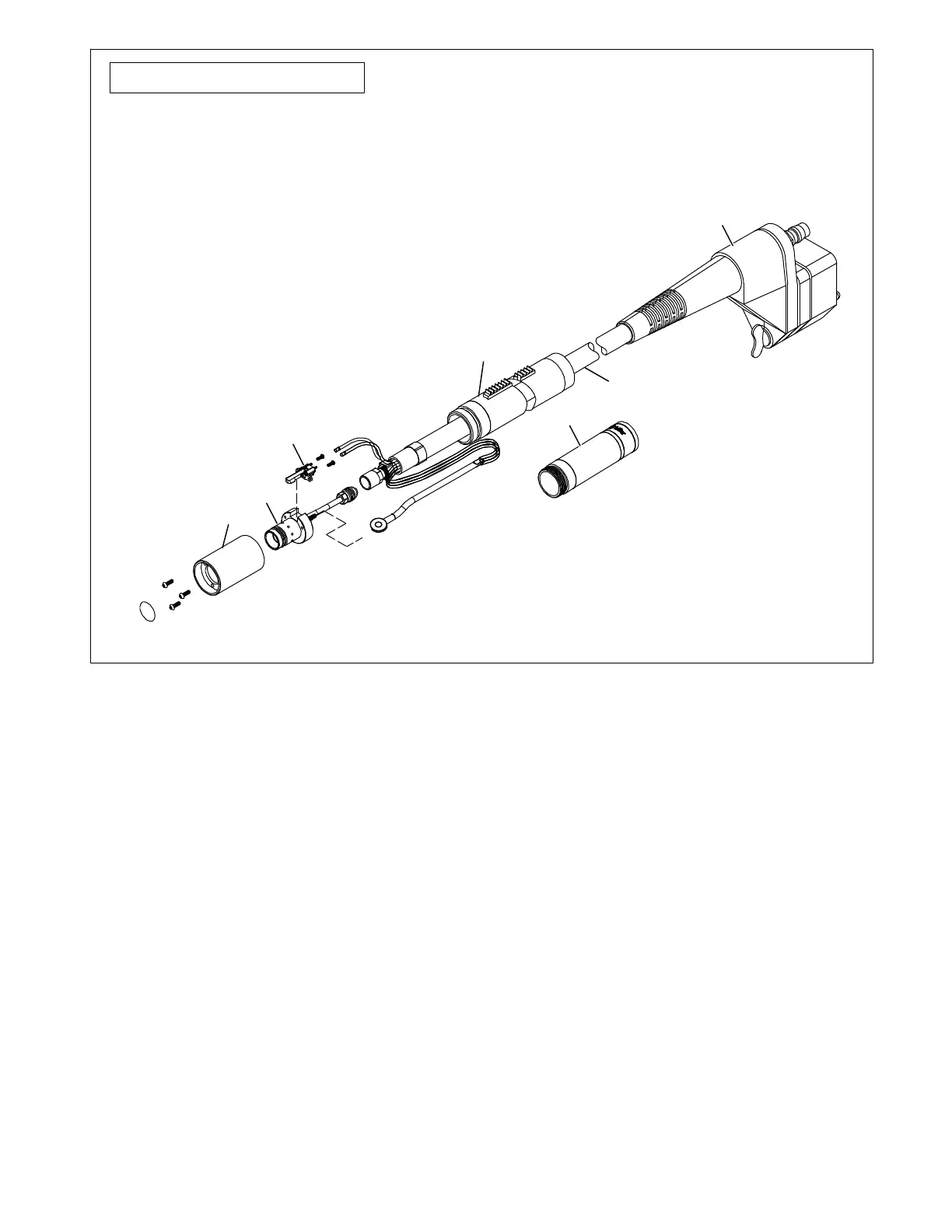

Figure 7-12. Torch, XT60M
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model (located on nameplate on front of unit) and serial number (located on outside
bottom of plasma cutter base) is required when ordering parts from your local distributor.
