24
Once the machine is in place and assembled this far, have the power and air supplies
connected by qualified personnel as described in chapter 1. See the safety checklist on
page 2 for qualifications

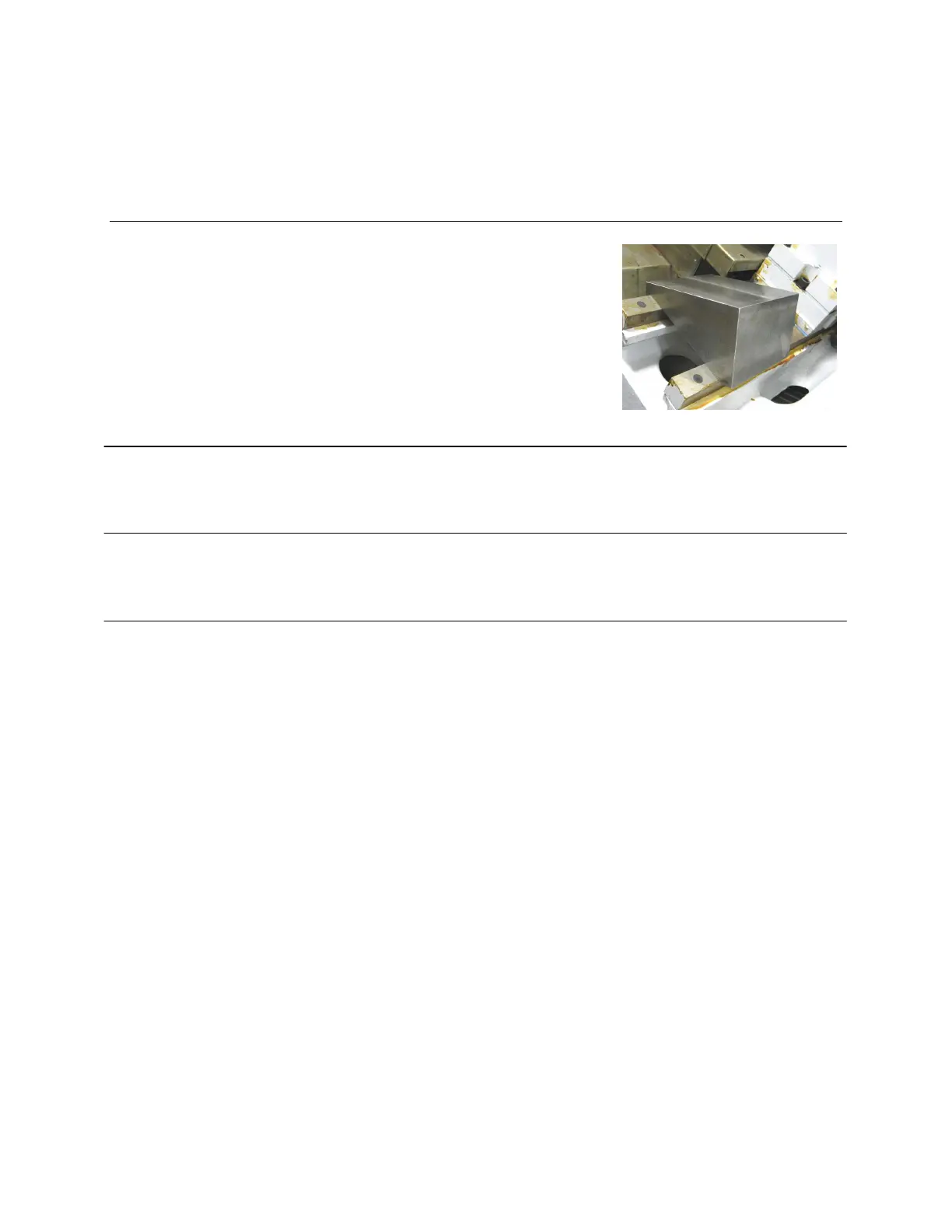

Place the leveling block on the tailstock ways as pictured,
then rough level the machine.
Slide the flood coolant tank under from the front of the machine.
Connect the chuck and tailstock foot switches to the front of the machine
Place the chip conveyor (if equipped) and connect the cable to the connector on the
side of the machine.
Level the Machine
(Refer to the next section for details concerning taper adjustment)
1. Place the leveling block supplied on the tailstock ways.
2. Place a precision level length wise on the leveling block and then level the machine
head to tail using the outer most footpads (4 corners).
3. Place the level “front to back” and then level the machine.
4. Double check level in both directions.
5. Adjust the remaining footpads to contact the floor, check for full contact on all pads.
6. Place the level on the ground surface of the saddle running perpendicular to the Z
axis way surface.
7. Check that all footpads have full contact on the floor, then tighten the jam nuts.
8. Turn a part without using the tail stock, then check the part for taper. .0002” per ft. is
the specification for maximum allowable taper.
9. Adjust the head stock to remove taper if found by loosening the mounting bolts and
adjusting the bolts, found on the back side of the head stock (behind mag box).
Repeat step 7.
10. Check side to side adjustment of tail stock and adjust if necessary.
