Milltronics XRS-5 - Page 12

Page 12 XRS-5 Transducer PL-590

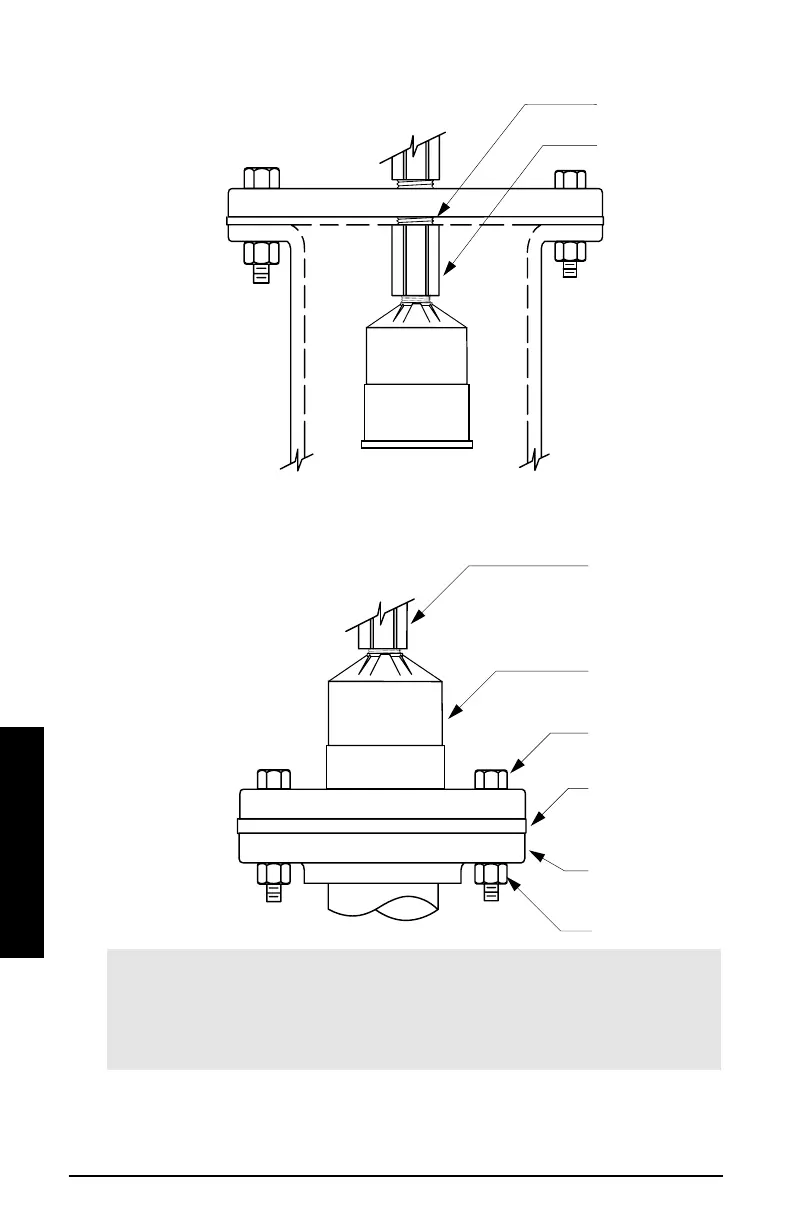

Mounting
Blind Flange
Face Flange
Note:
Tighten the flange bolts evenly in order to ensure a good seal between the
mating flanges.
Caution: Over tightening can cause performance degradation.
nipple welded
to bind flange
coupling
factory flanged
transducer
bolt
gasket
customer flanged,
flat face only
nut
coupling
