Page 16 XRS-5 Transducer PL-590
Applications
Transducer Placement

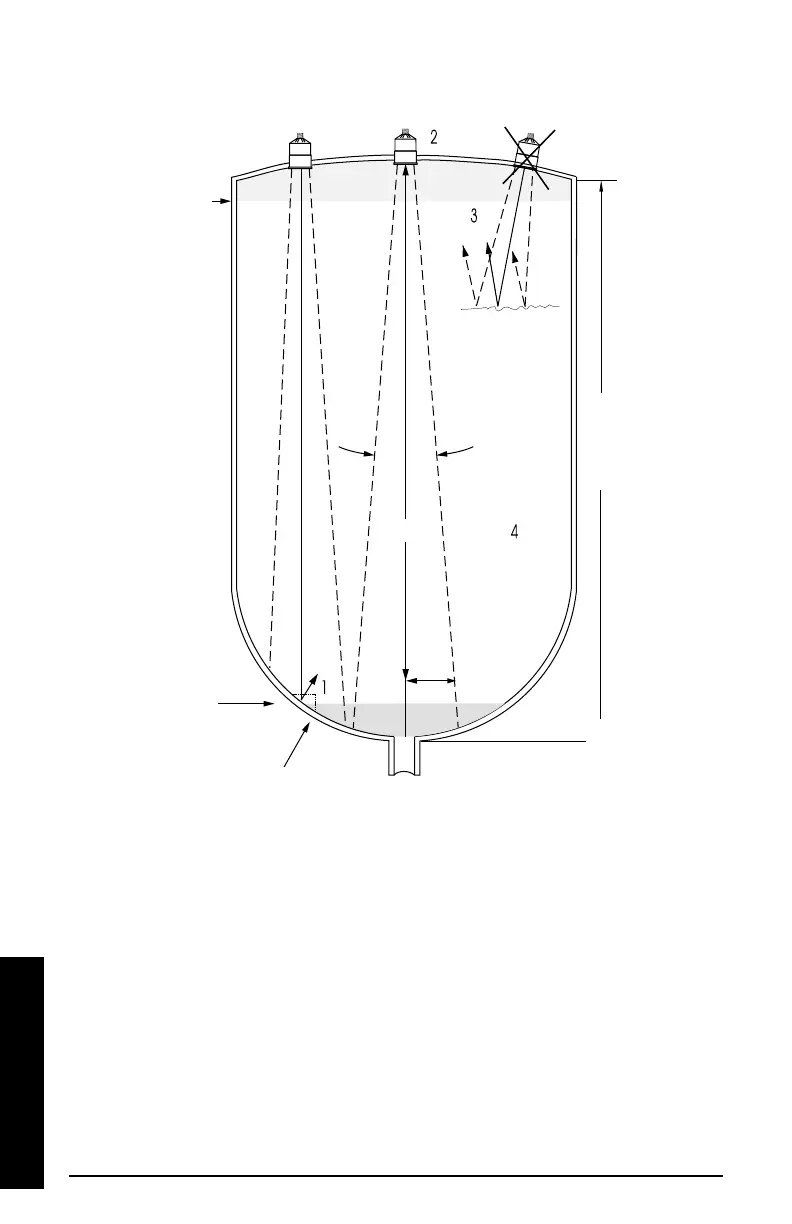

The following graphic shows the best placement of the XRS-5 transducer.
Locations
A. Primary location. This is the preferred location and should be used
whenever possible. The centre of the tank generally gives the most reliable
readings because there are fewer obstructions to provide false echos.
B. Alternate location. This location is used if the centre of the tank is already
in use or if the tank roof is too weak to hold the transducer safely.
C. Poor location. This is a poor installation location. The echos are shown
reflecting away from the transducer face.
beam
angle
rise
‘B’
‘A’
‘C’
may require target to
obtain empty reading
discharge
tank
manufacturer’s
empty level
Empt
level for ‘B’
location. Below this
level, echo would
reflect awa
from
the transducer.
Maintain full fluid
level for full o
offset calibration.
Do not allo
material to ente
blankin
zone.
span:
distance between
Empty and Full
levels in the
measured process
run
