Milltronics XRS-5 - Coaxial & 2-Wire Extension

Page 20 XRS-5 Transducer PL-590
Interconnection

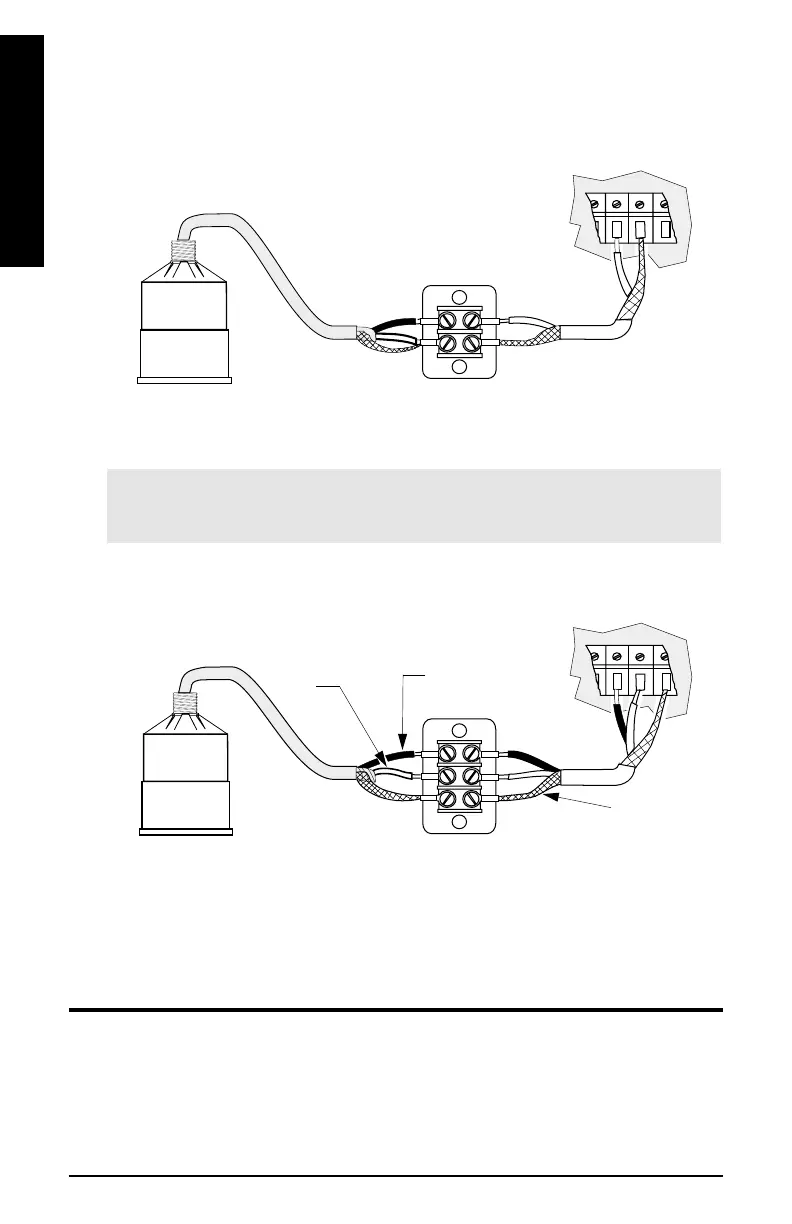

Coaxial Connection
Connect the transducer to the Milltronics transceiver via a junction box and
RG–62 A/U coaxial cable. This setup is effective for combined runs up to
365m (1200’).
Note:
When connecting to an EnviroRanger ERS 500, do NOT use coaxial
cable, see diagram below for proper procedure.
2-Wire Extension (for EnviroRanger ERS 500 only)
Maintenance
Normally, no maintenance is required on the transducer.
However, if performance changes are observed, immediately shut down the
level measurement system and perform a thorough inspection, especially on
the transducer.
extend cable using
RG – 62 A/U coax
blk
drain / shield
wht
extend cable using 18 AWG
shielded / twisted pair
junction box
