PL-590 XRS-5 Transducer Page 19
Interconnection
Interconnection
Note:
Installation shall only be performed by qualified personnel and in
accordance with local governing regulations.
Dos and Don’ts
For best results follow these installation rules:
• Do not route cable openly, instead run cable separately in a grounded metal
conduit to protect it from ambient electrical noise.
• Seal all thread connections to prevent the ingress of moisture.
• Do not run cable near high voltage or current runs, contactors or SCR
control drives.
In all of the following examples the terminal blocks on the transceiver are
described in the transceiver manual.

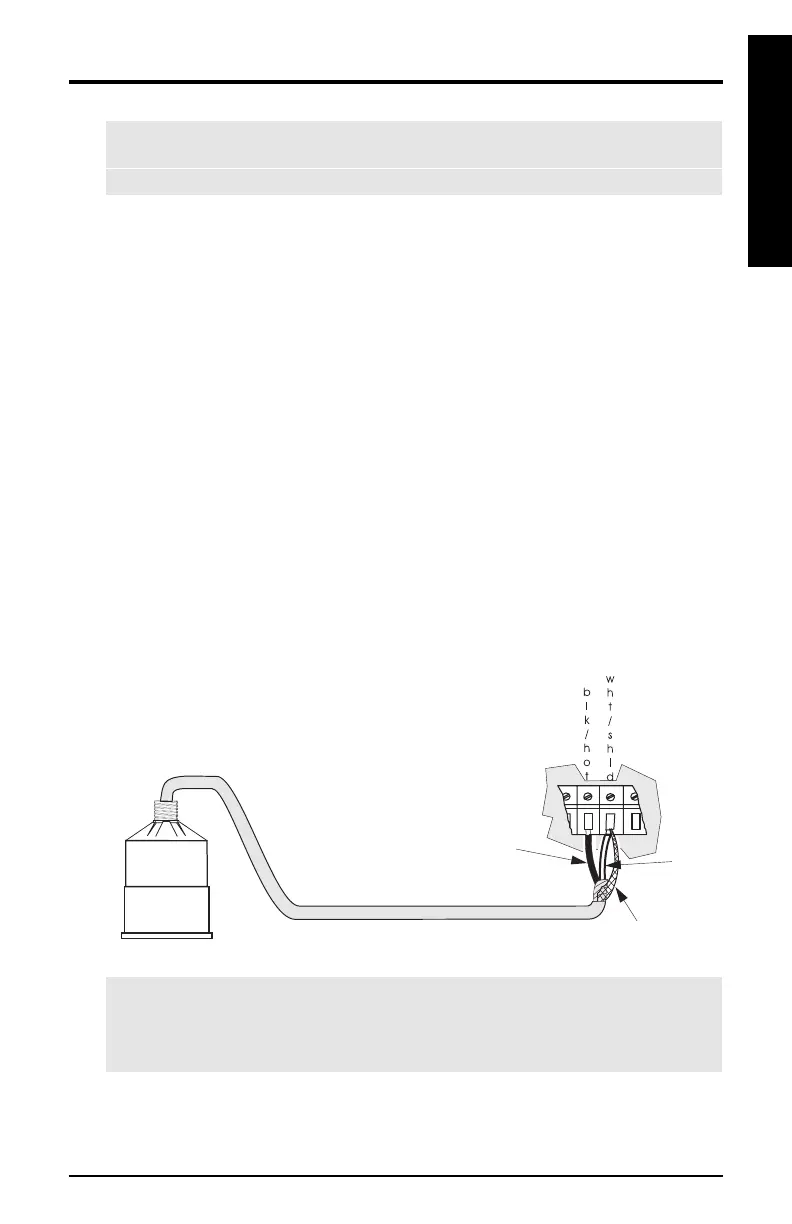

Direct Connection
Connect the transducer directly to the Milltronics transceiver via the 2
conductor shielded cable.
Note:
When connecting to an EnviroRanger ERS 500, the white, black, and
shield wires are all connected separately. Do not tie the white and shield
wires together.
blk
drain / shield
wht
