Chapter 3. Routine Maintenance
PELLERIN MILNOR CORPORATION

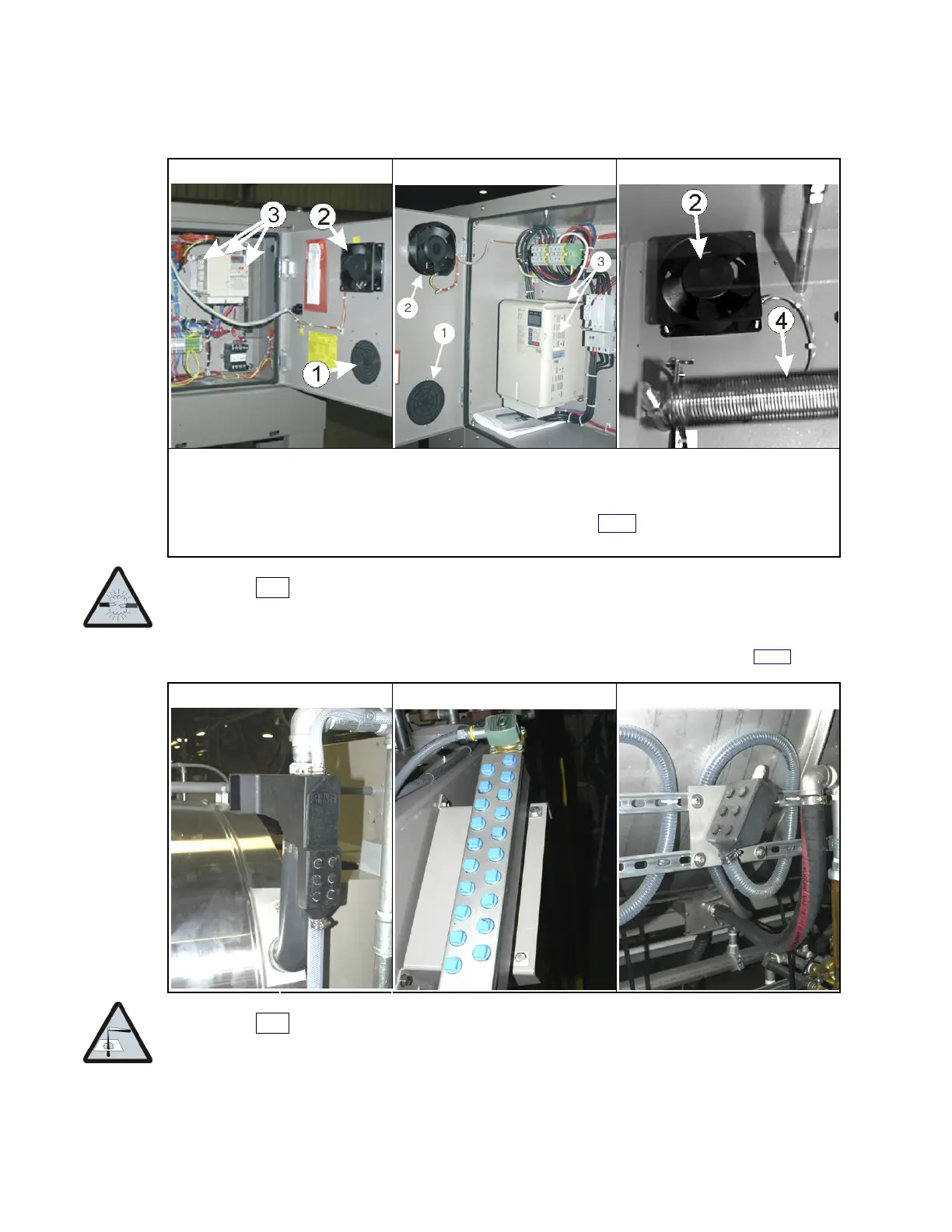

Figure 8: Electric Box and Inverter. These are examples. Your machine can look different.
30022X_ Washer-extractor 48040F_ Washer-extractor 76039 CBW Tunnel Washer
Legend
1. Air filter
2. Fan on elecrtric box door. Tip: Put streamers in front of the fan to make sure the fan operates.
3. Inverter cooling vanes and vents. See
caution statement 25 .
4. Braking resistor, if applicable
.
CAUTION 25 : Risk of damage—The inverter will burn out without sufficient airflow.
• Keep fans, filter, vents, and braking resistors clean.
Figure 9: Chemical Inlet Manifolds for Chemical Pump Systems. See caution statement 26 .
These are examples. Your machine can look different.
36026V7J 60044WP2 76039CBW
.
CAUTION 26 : Risk of corrosion damage to the machine and the goods—
• Connect chemical tubes only to chemical manifold inlets.
• Stop leaks. Remove leaked supplies from surfaces.
• Speak to your dealer or Milnor if you see corrosion damage.
