Chapter 3. Routine Maintenance
PELLERIN MILNOR CORPORATION

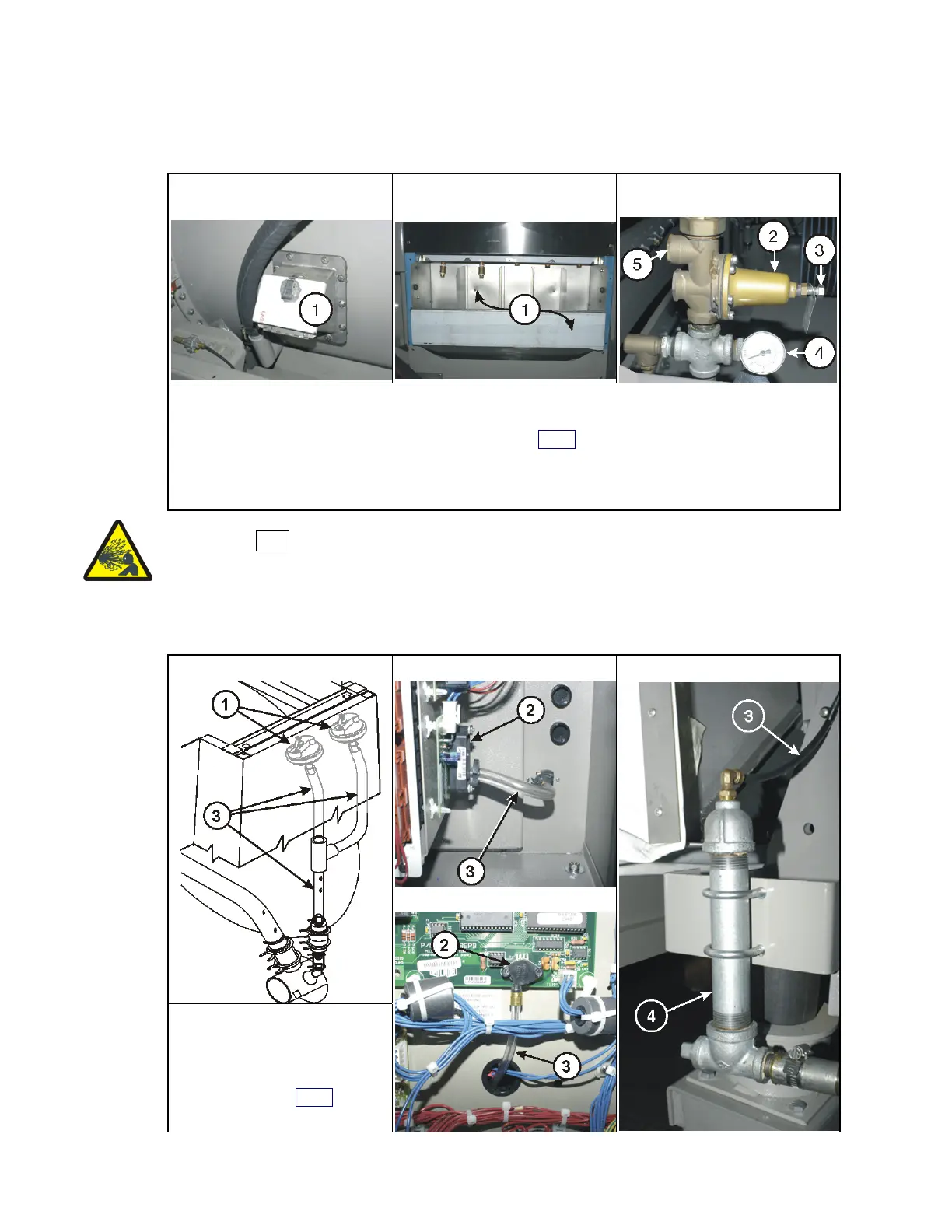

Figure 10: Soap Chute and Optional 5-compartment Supply Injector. These are examples. Your
machine can look different.
Soap Chute Supply Injector Flush Water Adjustment
Components
Legend
1. Do not let chemical supplies stay on surfaces.
2. Water pressure regulator. See
caution statement 27 .
3. Adjustment screw
4. Water pressure gauge.
5. Strainer inside
.
CAUTION 27 : Risk of injury and damage—Chemical supplies can splash on personnel
and machine surfaces if water pressure is too high.
• Make sure the pressure is set as told in the maintenance summary.
Figure 11: Air Tube for the Water Level Sensor. These are examples. Your machine can look
different.
30022T5E Washer-extractor 42044SP2 Washer-extractor 36030F8_ Washer-extractor
30022V6J Washer-extractor
Legend
1. Level switches
2. Pressure transducer
3. Air tube. See
caution
statement 28
.
4. Air chamber
33
