Milwaukee M12 3PL - Mounting and Adjustments; Wall Mount Installation; Target Plate and Pivot Adjustment; Tripod Mounting Options

7ENGLISH
WALL MOUNT & GREEN TARGET PLATE
Use the green target plate to improve visibility of the laser beam in unfavourable conditions
and at greater distances.
Tripod mount 1/4"
Tripod mount 5/8"

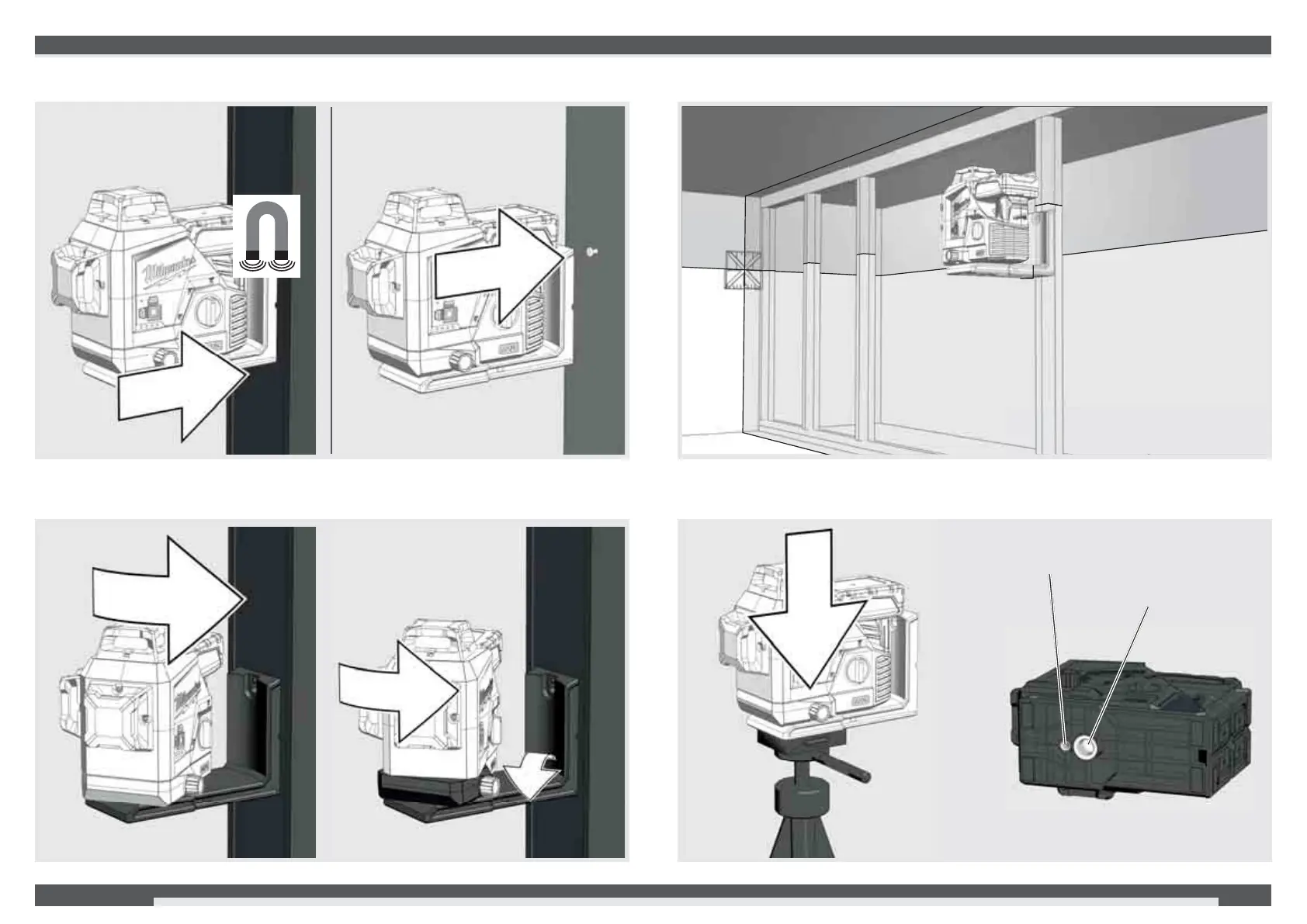

Use the magnetic wall mount to fi x the laser
to a wall or metallic structures or similar.
Or fi x it with a screw or nail on a pillar
Turn the laser 330°. Use the tripod mount to fi x the laser on a tripod Use the adjustment knob for 10° pivot micro
adjustment
